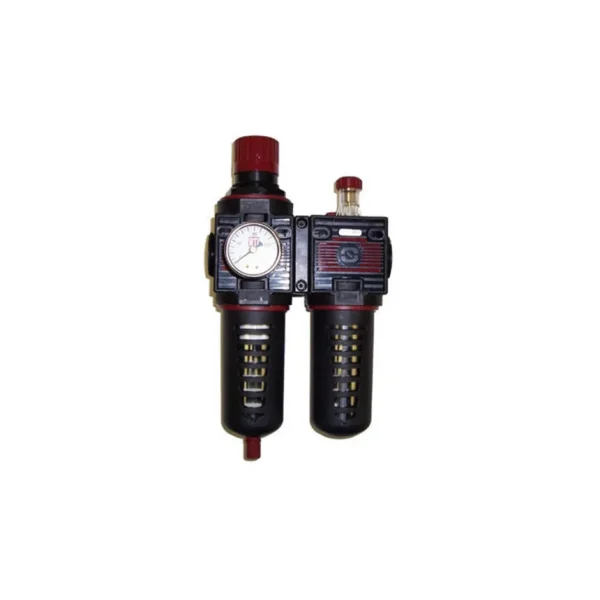

RTI Filter/Regulator with Gauge

• Economical filter/regulator for even the smallest shops.
• Perfect for the DIY-er.
• Light weight acetal body with polyamide bowl
• Filter/Regulator with glass face chrome gauge
• Low pressure drop Semi-automatic drain with manual override
• Filter with adjustable 0 to 120 PSI regulator
• Can be wall mounted or panel nut mounted
• Siphon tube filter provides clean lubricant down stream
• Adjustable oil feed with tamper-proofing capability

Specifications

• Flow Capacity: 30 SCFM (FR250-G) / 80 SCFM (FR500-G)
• Port Size: 1/4″ or 1/2″
• Max. Supply Pressure: 230 PSIG (FR250-G) / 180 PSIG (FR500-G)
• Max. Operating Temp: 120ºF
• Filter Capacity: 5 micron
