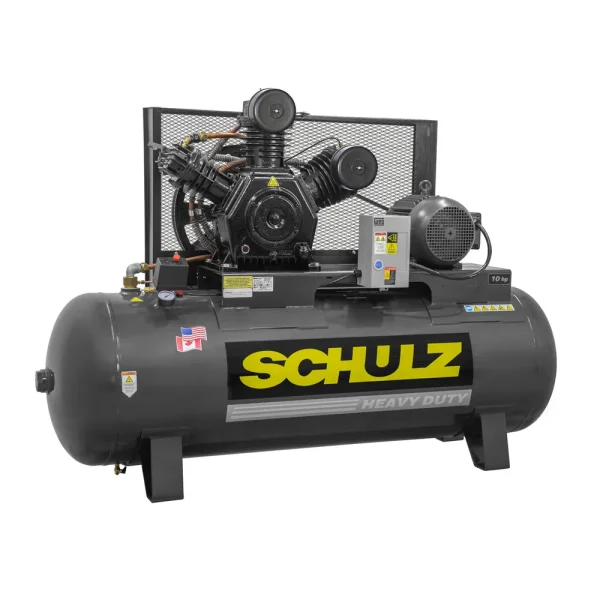

Schulz 208-230/460V 10HP 3PH 120 Gal Hori Air Compressors (932.9344-0)

The Schulz 208-230/460V 10HP 3PH 120 Gal Hori Air Compressors (932.9344-0) is a heavy-duty, two-stage air compressor designed for demanding applications. It’s built to last with a cast iron construction and powerful 10 HP motor.

KEY FEATURES AND BENEFITS:

• Two-Stage Operation: Delivers cooler, drier air for optimal performance.
• Cast Iron Construction: Ensures durability and longevity.
• V-Cylinder Design: Efficient cooling and reduced noise levels.
• 120-Gallon Tank: Provides ample air storage for continuous operation.
• Easy Maintenance: Simple access to components for routine upkeep.

SPECIFICATIONS:

• Air Displacement: 40 CFM
• Motor Power: 10 HP
• Maximum Operating Pressure: 175 PSI
• Voltage: 208-230/460 V
• Tank Size: 120 gallons (horizontal)
• Compressor Unit – No. Stages: Two Stages
• Compressor Unit – No. Pistons: 3-W

HOW TO USE:

1. Connect Power: Ensure the compressor is plugged into a properly grounded outlet.
2. Check Air Pressure: Verify the desired air pressure setting on the pressure gauge.
3. Start the Compressor: Turn on the power switch to initiate the compression process.
4. Monitor Operation: Keep an eye on the pressure gauge and temperature gauge to ensure optimal performance.
5. Shut Down: Once finished, turn off the power switch and allow the compressor to cool down before storing.

BENEFITS OF USING SCHULZ 208-230/460V 10HP 3PH 120 GAL HORI AIR COMPRESSORS (932.9344-0):

• Reliable Air Supply: Ensures consistent performance for various tasks.
• Increased Productivity: Efficient operation reduces downtime and maximizes output.
• Reduced Maintenance Costs: Durable construction and easy maintenance minimize repair needs.
• Improved Air Quality: Cooler, drier air improves tool performance and reduces wear.

FEATURES:

• Powerful 10 HP motor
• Durable cast iron construction
• Efficient V-cylinder design
• Large 120-gallon air tank
• Easy-to-use controls
• Low maintenance requirements
