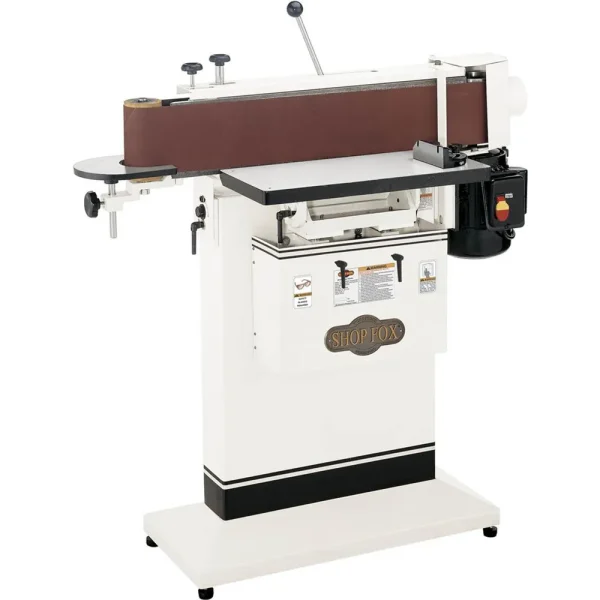

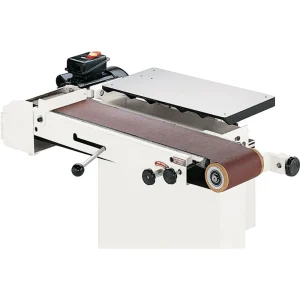

Shop Fox 1-1/2 HP 6″ x 80″ Edge Sander with Cast-Iron Table and Platen (W1688) combines industrial quality with a compact design to maximize shop space and efficiency. The sander features a graphite-coated cast-iron platen, precision-ground cast-iron tables, and a stable powder-coated stand, making it a reliable and long-lasting investment.
This Shop Fox edge sander W1688 is perfect for professional woodworkers and hobbyists alike. With its powerful 1-1/2 HP motor and robust construction, it delivers exceptional performance for all your sanding needs.
- Specifications and Dimensions
- Motor: 1-1/2 HP, 110V/220V, pre-wired 220V, single-phase
- Precision-ground cast-iron table size: 22″ x 10-1/2″
- Table travel: 5″
- Belt size: 6″ x 80″
- Belt speed: 1800 FPM
- Platen size: 6-3/4″ x 29-3/4″, graphite coated
- Shielded & lubricated ball bearings
- Quick-release belt
- Spring-loaded table elevation
- Powder-coated finish
- 4″ dust port
- Belt tracking and tension adjustment
- Footprint size: 14-1/2″ W x 29-1/2″ L
- Approximate shipping weight: 341 lbs
- Key Features and Benefits
- Powerful 1-1/2 HP motor for efficient sanding
- Large, precision-ground cast-iron table for stability
- Graphite-coated platen for smooth sanding
- Quick-release belt tension lever for easy belt changes
- Conveniently placed controls for user-friendly operation
- Durable powder-coated finish for longevity
