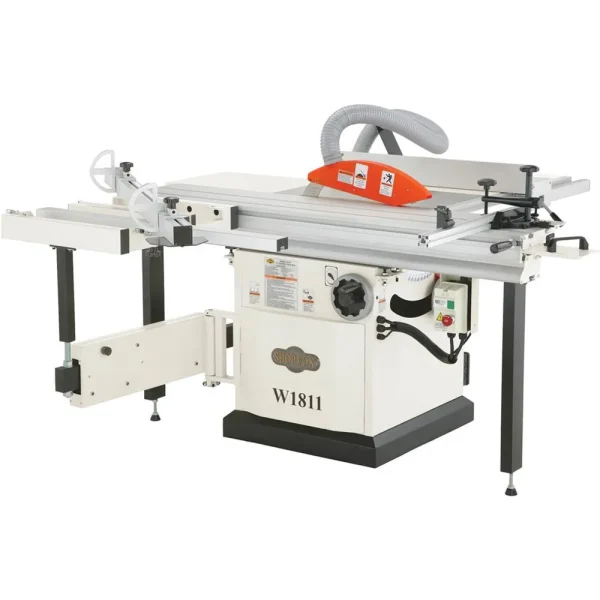

Shop Fox 5 HP 10-Inch Sliding Table Saw with Scoring Blade and Large Guard (W1811) is perfect for cutting wide panels in limited shop space. This saw features a scoring blade to eliminate cross grain tear-out, a 63″ long crosscut capacity, and a telescoping crosscut fence with two rock-solid flip stops.
This 10-inch sliding table saw accepts 10″ saw blades with 5/8″ arbor bores or dado blades up to 13/16″ wide. Designed to handle all standard plywood panels, the Shop Fox table saw is certified to CSA standards and comes with a 5 HP motor to tackle any woodworking project with ease.
- Specifications and Dimensions
- Motor: 5 HP, 230V, single-phase, TEFC, 3450 RPM, 19A
- Blade tilt: 0° – 45°
- Table size without extension wings: 27″L x 14-3/8″W
- Table size with extension wings: 47″L x 40″W
- Sliding table size: 63″L x 12-1/4″W
- Main blade arbor speed: 4000 RPM
- Main blade diameter: 10″
- Main blade arbor diameter: 5/8″
- Scoring blade diameter: 3-1/8″
- Scoring blade arbor diameter: 22mm
- Scoring blade arbor speed: 8000 RPM
- Max. dado width: 13/16″
- Max. depth of cut at 90°: 3-1/8″
- Max. depth of cut at 45°: 2-1/4″
- Max. ripping width with standard rip fence: 33″
- Max. crosscutting width with crosscut fence: 78-1/2″
- Max. crosscutting length with crosscut fence: 63″
- Overall size: 76″L x 124-3/4″W x 46″H
- Space required for full range of movement: 123″ x 150″
- Dust ports: 4″ main, 2-1/2″ on blade guard
- Shielded and lubricated bearings
- Approximate shipping weight: 688 lbs.
- Certified to CSA Standards
- Key Features and Benefits
- 5 HP motor for powerful performance
- 10-inch blade with scoring blade to prevent tear-out
- Large crosscut capacity and telescoping fence for wide panels

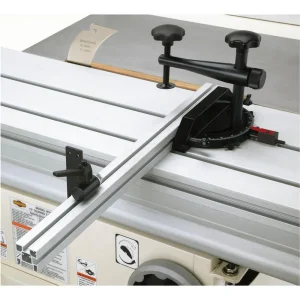

- Fully adjustable miter fence with flip stop

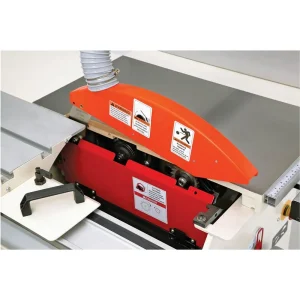

- Integral dust port in the blade guard for cleaner operation
- Certified to CSA standards for safety and quality
