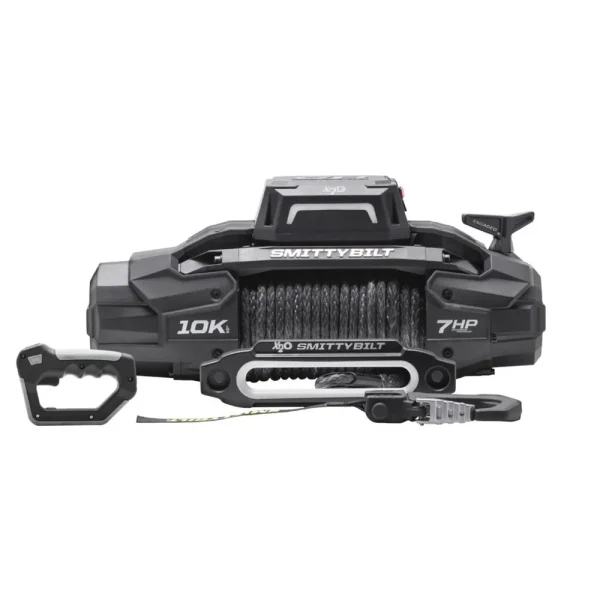

Smittybilt X20 GEN 3 10K Winch with Synthetic Rope (SMB98810)

The Smittybilt X20 GEN 3 10K Winch with Synthetic Rope (SMB98810) is built for off-road enthusiasts who need reliable recovery solutions. Featuring a 10,000-lb load capacity and a durable synthetic rope, this winch is designed to handle tough conditions. The Gen 3 upgrade includes enhanced performance, a faster line speed, and an improved ergonomic controller. Its waterproof construction ensures functionality in extreme environments, while the high-efficiency motor delivers consistent pulling power.

Features & Specifications:

• Load Capacity: 10,000 lbs
• Synthetic Rope: 3/8″ x 98.5′ synthetic rope
• Waterproof Rating: IP68-rated for all-weather performance.
• Motor: 7 HP series wound motor
• Remote: Wireless remote with 10′ charging/wired cord.
• Gear Ratio: 218:1 for optimized efficiency.
• 3-stage planetary gearbox
• Sliding ring gear clutch
• Brake: Automatic Out-Of-Drum
• Recommended Battery: 650CCA Minimum for Winching.
• 5′ battery power cables
• Mounting Bolt Pattern: 10.0″ x 4.50″
• Weight: 59 lbs
• Dimensions: 22.3″ L x 5.4″ W x 9.4″ H
• 5-Year Electrical / Limited Lifetime Mechanical Warranty.
