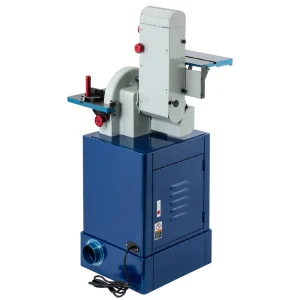

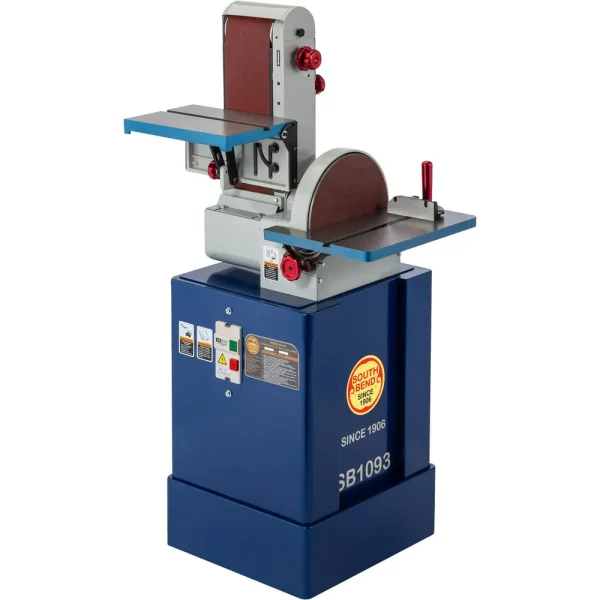

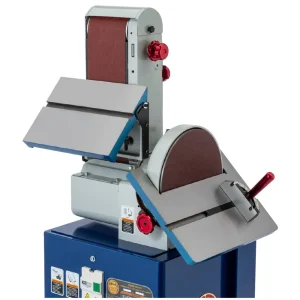

South Bend 6″ x 48″ Belt and 12″ Disc Combination Sander (SB1093) is engineered for both versatility and durability, designed to handle a wide range of sanding tasks with precision. The belt assembly pivots for vertical, horizontal, or angled sanding, with lockable positions at 0°, 45°, and 90° to ensure accuracy with every use.
Each cast-iron table is precision-ground for stability, with adjustable angles from 0–45° and a slot for the included miter gauge. The sander’s robust steel base ensures vibration-free operation and holds a 4″ dust port for effective dust collection. Prewired for 115V, this unit can also be converted to 230V by a qualified technician, enhancing flexibility in different workshop setups.
- Specifications and Dimensions
- Motor: 1.5 HP, 115V/230V (prewired 115V), single-phase, 14A/7A
- Sanding Belt Size: 6″ x 48″
- Sanding Belt Speed: 2690 FPM
- Platen Size: 6″ x 14-1/2″
- Belt Sanding Head Tilt: 0–90°
- Belt Sanding Table Size: 10″ x 14″
- Belt Sanding Table Tilt: 0–45°
- Sanding Disc Diameter: 12″
- Sanding Disc Speed: 2630 RPM
- Sanding Disc Type: PSA
- Disc Sanding Table Size: 9″ x 17-3/8″
- Disc Sanding Table Tilt: -15° to 45°
- Dust Port Size: 4″
- Footprint: 19″ W x 21″ L
- Overall Size: 28″ W x 30″ D x 54-1/2″ H
- Key Features and Benefits
- Heavy-duty, precision-ground cast-iron tables for stability and durability
- Belt assembly pivots for versatile sanding positions—vertical, horizontal, and angled
- Includes miter gauge for precision sanding
- Adjustable sanding tables for various angles—perfect for custom projects
- Robust cabinet steel base with dust port for efficient dust control
