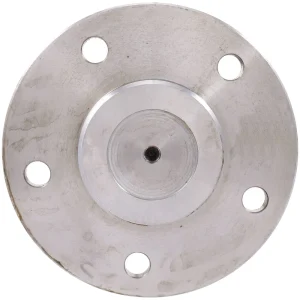

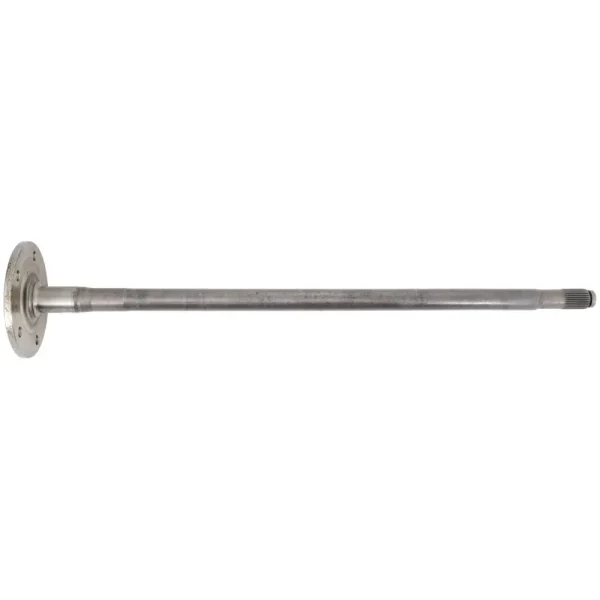

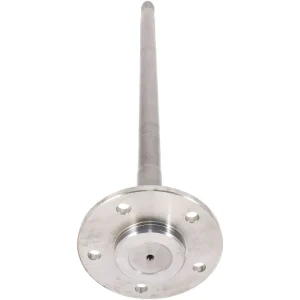

Spicer SVL Axle Shaft – 2022607

Original price was: $132.99.Current price is: $39.90.

Availability: 9 in stock

🚚 Free Shipping over $59
✓ Premium Quality
🔒 Secure Payments
↻ Money Back Guarantee
SKU: GTC-045555
CATEGORY: Drivetrain
Description

Product Information

  • Warranty: Limited Lifetime Warranty
  • Unit of Measure: Each
  • UPC: # 23913243982
  • Material: Steel
  • Length (in): 35.620 Inch
  • Length (mm): 905mm
  • New Or Remanufactured: New
  • Axle Type: Complete Assembly
  • Number Of Inboard Splines: 31
  • Number Of Bolt Holes: 10
  • Gasket Or Seal Included: No
  • Axle Nut Included: No
  • Bearing Included: No
  • Bolt Pattern: 5 On 5-1/2 Inch
  • Full-Floating Or Semi-Floating Axle: Semi-Floating
  • Wheel Nuts Included: No
  • Wheel Studs Included: No
  • Number Of Wheel Lugs: 5
  • Retainer Ring Included: No
  • U-Joint Included: No
  • Wheel Bolt Prep Kit Included: No
  • Spline Length (in): 1.500 Inch
  • Axle Diameter (in): 1.330 Inch
  • Axle Model: Ford 8.8
  • Spline Length (mm): 38mm
  • Axle Diameter (mm): 33.78mm
  • ABS Type: Non-ABS

Detailed Description

Drive Axle Shaft;

Strength and durability to ensure longer life. Get genuine performance from genuine Spicer. Spicer parts are designed, engineered, and manufactured to meet or exceed OE requirements, because they are OE parts, ensuring a perfect fit with our full line of industry leading axles. That is why Spicer is the name you can trust for top performance and durability

  • Manufactured from SAE-1541 steel
  • Precision heat-treated for optimal hardness and durability
  • Rolled or cut splines depending on application
  • Meets Dana aftermarket requirements for static ultimate strength, torsional fatigue and rotating/bending torque.
