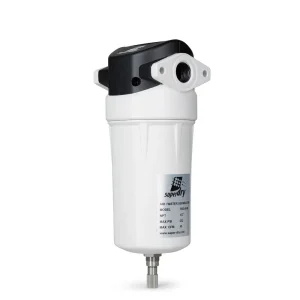

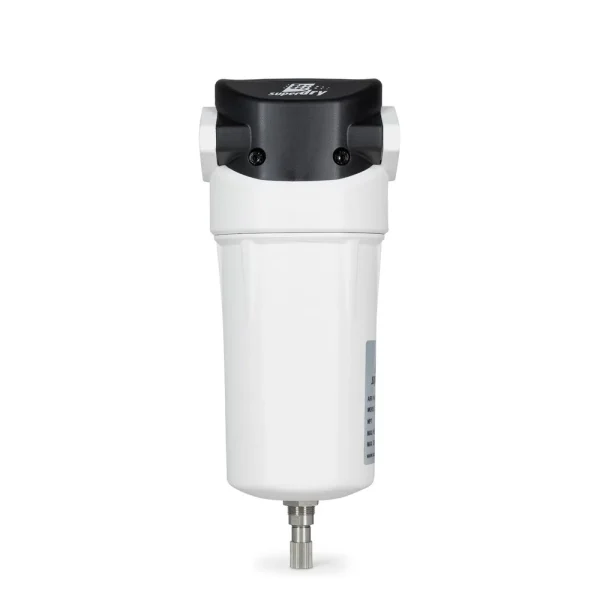

Super-Dry FSD-45-W – 1/2″ Water Separator (330-100)

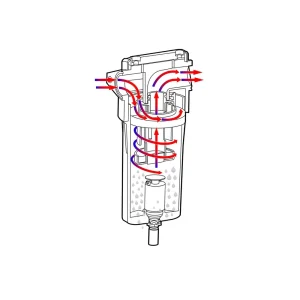

The FSD Series Water Separators are expertly designed for the efficient removal of bulk liquid contamination from compressed air systems. By utilizing centrifugal motion, these Super-Dry water separators effectively force liquid water out of compressed air, ensuring your equipment operates smoothly and efficiently. Each centrifugal separator is equipped with a built-in float drain and an internal spinner, which removes large quantities of condensate through centrifugal action. These water separators are ideally installed upstream of a compressed air dryer or downstream of aftercoolers or air receivers, making them essential for maintaining the integrity and performance of your compressed air systems.

• Inlet / Outlet Ports: 1/2″ NPT
• Airflow @ 100 PSIG: 45 SCFM
• Maximum Inlet Pressure: 232 PSIG
• Maximum Inlet Temperature: 176 °F (80 °C)

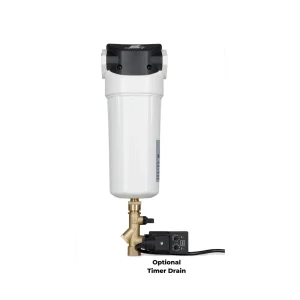

• Drainage: Float Drain (included) or Timer Drain (optional)

This FSD Series Water Separator is a critical component for maintaining clean and dry compressed air, preventing equipment damage, and ensuring long-lasting system performance.
