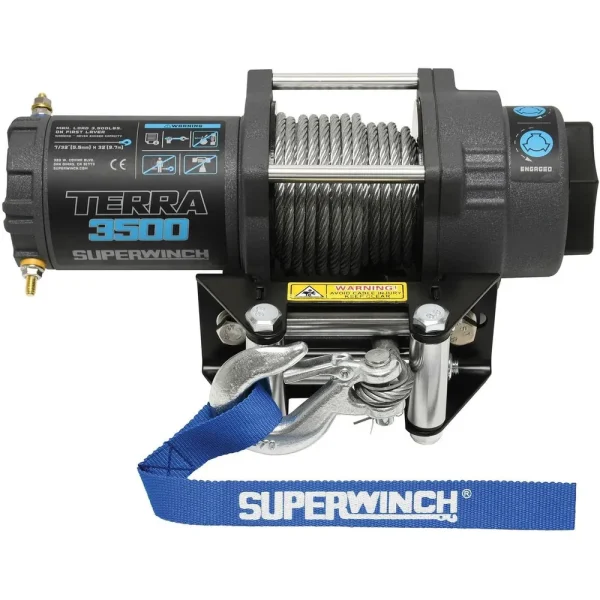

The Superwinch Terra Series 3500 lbs Winch is engineered for rugged ATV and UTV applications, combining powerful performance with exceptional durability. Featuring a permanent magnet motor, a 3-stage planetary gear system, and a heavy-duty steel drum, this winch ensures smooth and reliable operation. Designed with an IP67-rated housing, it protects against water and dust, while the ergonomic free-spool control knob and multiple control options offer ease of use. The wire rope, clevis pinned hook, and roller fairlead provide dependable and efficient recovery in challenging conditions.
Features:
- 3,500 lbs. rated line pull
- 1.6 HP permanent magnet motor
- 3-stage planetary gear system (198:1 ratio)
- IP67-rated dust and water protection
- Durable steel drum with a textured gray wrinkle powder coat finish
Benefits:
- Enhanced durability for tough outdoor use
- Smooth and consistent pulling power
- Reliable performance in extreme environments
- Easy control with wired remote and handlebar rocker switch
- Simple installation with a universal mounting plate
Technical Specifications:
- Rope Material: Steel wire (7/32 in. x 32 ft.)
- Drum: Heavy-duty fully welded steel
- Brake System: Full load-holding automatic brake
- Fairlead: 4-way roller (stainless steel)
- Dimensions: 12.7 in. (L) x 4.5 in. (W) x 4.5 in. (H)
- Mounting Bolt Pattern: 3 in. x 4.87 in.
- Weight: 20 lbs. (net), 29 lbs. (packaged)
- Remote Control: 10 ft. rubber-sealed handheld and handlebar rocker switch
