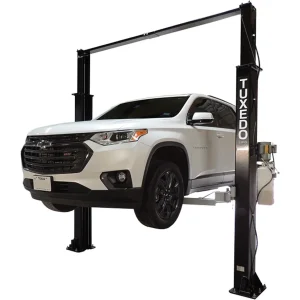

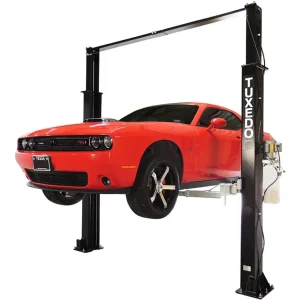

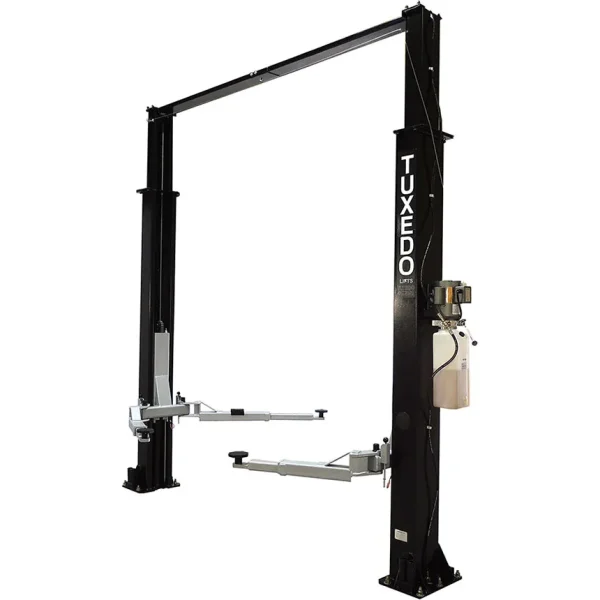

Tuxedo 9,000-lb. Asymmetric 2-Post Car Lift TP9KAC-TUX

Light Duty Two Post Clear Floor Asymmetric Lift

The one-piece column with uprights combined with reliable chain drive cylinders make this the perfect service lift for passenger cars, light duty trucks and most SUVs.

The Tuxedo 9,000 lb. Light Duty Two Post Lift is a clear floor vehicle lift with standard lift features including:

• 9,000 lbs. capacity
• Asymmetric Lift Arms
• Low profile swing arm design
• Low-profile drop-in lift pads

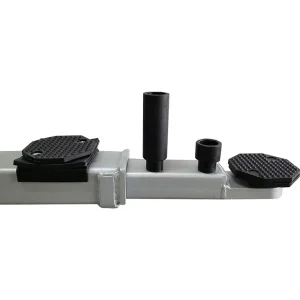

• 1 5/16″ & 5″ stackable height adaptors
• Saddle pad adaptors (1 pair)<
• Dual point lock release
• Overhead “Shut-Off” limit wire
• Automatic arm restraints
• Chain drive cylinders
• Durable powder-coat finish
• 1-Year Parts Warranty
• 5-Year Structural Warranty

Height Overall: 142.7″
Width Overall w/Power Unit: 141″
Max Lift Height: 72″
Width Between Columns: 110.4″
Min. Pad Height: 4″
Drive Thru Clearance: 93.7″
Lifting Speed: 50S
Short Arm Reach – min/max: 28.5″ – 41.4″
Long Arm Reach – min/max: 37.1″ – 57.2″
Max Load Per Arm: 2,250 lbs.
Ceiling Height Required: 144″
Shipping Weight: 1,390 lbs.
Power: 220V – 20 AMP – 1 PH

sku: 1204102
