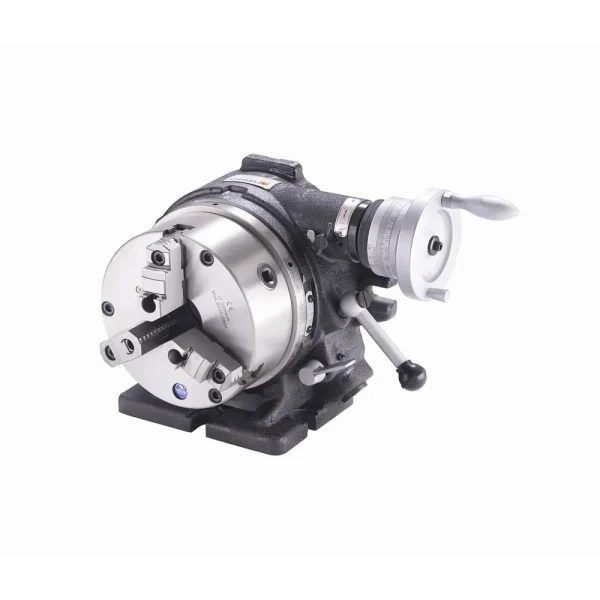

Super 6″ Rotary Indexing Fixture – Vertex is well-known Taiwanese brand in the field of indexing equipment used in machining and manufacturing. They are renowned for high precision and quality machining equipment. Vertex indexers are considered more cost-effective for applications that require the highest level of precision & value. Known for their exceptional accuracy & durability, they are suitable for demanding applications where tight tolerances are crucial. Vertex uses better materials and manufacturing processes, resulting in a more robust and durable product. The components are machined to higher tolerances, reducing play and wobble. This unit is designed for milling, drilling, jig boring, and many other shop applications. Hardened and ground 24 position index plate with 15° increments. 360° satin chrome graduated ring with a 10 second adjustable vernier plate insures accurate readings. Each unit is equipped with 6 masking plates for fast and simple indexing of 2, 3, 4, 6, 8 and 12 divisions. Complete with a 3-jaw chuck and faceplate. Maximum individual spacing error is 25 seconds. Squareness (table base to chuck 90°) is 0.0008″. Base parallelism from face to face is 0.0004″. Mounting flange concentricity is 0.0008″. Chuck concentricity is 0.0005″. Center hole is 1-23/32″. Vertex # CS-6. Vertex is well-known Taiwanese brand in the field of indexing equipment used in machining and manufacturing. They are renowned for high precision and quality machining equipment. Vertex indexers are considered more cost-effective for applications that require the highest level of precision & value. Known for their exceptional accuracy & durability, they are suitable for demanding applications where tight tolerances are crucial. Vertex uses better materials and manufacturing processes, resulting in a more robust and durable product. The components are machined to higher tolerances, reducing play and wobble. Maximum individual spacing error is 25 seconds. Vernier reading is 10 seconds. Squareness (table base to chuck 90°) is 0.0008″. Base parallelism (face to face) is 0.0004″, Mounting flange concentricity is 0.0008″. 8″ Faceplate. Chuck center hole is 1-23/32″. Hardened and ground 24 position index plate in 15° increments. Chuck concentricity is 0.0005″. Designed for milling, drilling, jig boring, and many other shop applications.
