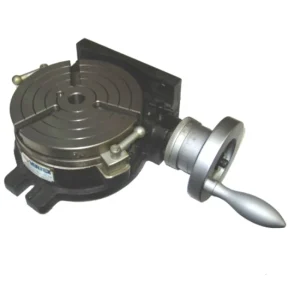

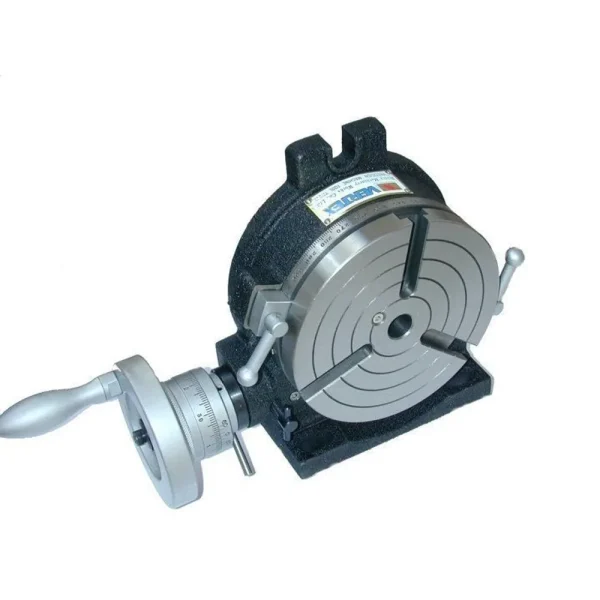

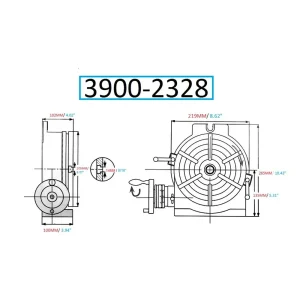

Vertex 8″ Horizontal/Vertical Rotary Table – Vertex High Precision Taiwanese Rotary Tables are known for their accuracy, which is achieved through careful manufacturing processes and precision grinding of the table surface. These tables are made from high-quality, high density Meehanite cast iron. They are very versatile and can be used for a wide range of machining operations – from milling, drilling, boring and grinding. Use these tables with front mount chucks. Table size is 8″. Overall horizontal height is 4.1″. Overall vertical height is 10.4″. Center hole is 3MT. Vertical center height is 5.3″. 3 T-slots. T-slot size is .55″. Weight is 60 lbs. 10 second vernier reading. Gear ratio 90 to 1. One rotation of handle equals 4° on collar. Horizontal load capacity is 176 lbs. Vertical load capacity is 88 lbs. Vertex #HV-8. Vertex High Precision Taiwanese Rotary Tables are known for their accuracy, which is achieved through careful manufacturing processes and precision grinding of the table surface. These tables are made from high-quality, high density Meehanite cast iron. They are very versatile and can be used for a wide range of machining operations – from milling, drilling, boring and grinding. Use these tables with front mount chucks. One rotation of handle equals 4° on collar. 10 second vernier reading with a gear ratio of 90 to 1. Overall Horizontal Height is 4.1″ ~ Overall Vertical Height is 10.4″ Center Hole is 3MT ~ Vertical Center Height is 5.3″ ~ 3 T-Slots ~ T-Slot Size is .55″
