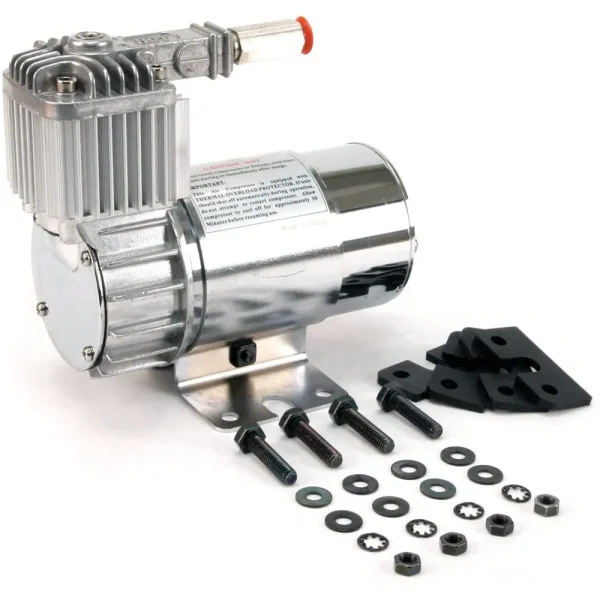

VIAIR 100C Chrome Compressor Kit with Omega Mounting Bracket (10016)

VIAIR 100C Chrome Compressor Kit with Omega Mounting Bracket (10016) is a 12-Volt air compressor designed for efficient air compression with a sleek chrome motor housing and end plates. This compressor features a permanent magnetic motor, delivering up to 130 PSI of maximum working pressure with a 15% duty cycle at 100 PSI.

The included omega-style mounting bracket provides secure installation, while the insulated pre-installed wiring ensures safe and reliable operation. This kit includes a thermal overload protector, vibration isolators, and a check valve for seamless performance.

• Specifications and Dimensions
  • 12-Volt Permanent Magnetic Motor
  • Duty Cycle: 15% @ 100 PSI
  • Max. Working Pressure: 130 PSI
  • Max. Air Tank Size: 1.0 Gallon
  • Max. 12V Amp Draw: 18 Amps
  • Ingress Protection Rating: IP54
  • Dimensions: 6.0″L x 3.5″W x 5.3″H
  • Net Weight: 3.45 lbs.
• Key Features and Benefits
  • Prevents overheating during extended use
  • Ensures secure and stable installation
  • Eliminates head pressure for prolonged service life
  • Reduce noise and ensure stable operation

• Includes
  • Thermal Overload Protector
  • Omega Bracket
  • Check Valve
  • Vibration Isolators
  • Mounting Hardware
  • Installation Instructions
