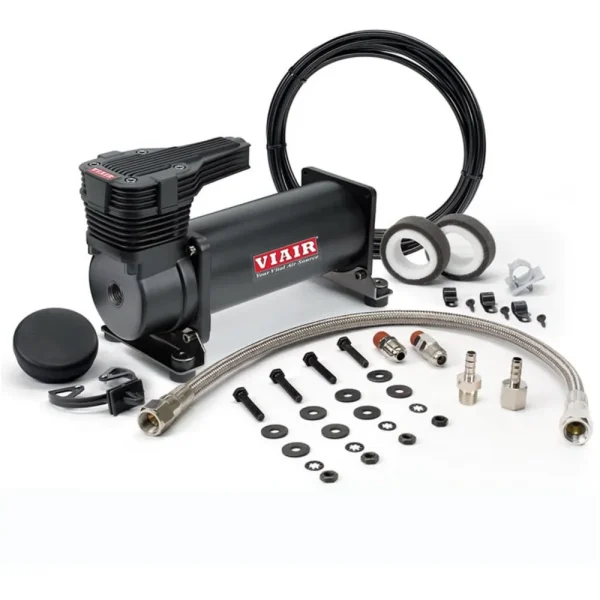

VIAIR 485C HG 200 PSI Series Compressor Kit (48550) is a robust air compressor solution featuring a 100% duty cycle at 200 PSI. The HG (High-Grade) Series compressor kit includes a CE intercooler head, sealed IP67 protection, and delivers high performance for all your air supply needs.
The VIAIR 48550 485C HG provides exceptional durability with a thermal overload protector, stainless steel braided leader hose, and check valve. The 485C HG Series Compressor Kit includes a matte black filter cap cover with the VIAIR logo, air filter assembly, and vibration isolators for smooth operation.
- Specifications and Dimensions
- 12-Volt Permanent Magnetic Motor
- Duty Cycle: 100% @ 200 PSI
- Max. Working Pressure: 200 PSI
- Max. Air Tank Size: 5.0 Gallon
- Max. Amp Draw: 23 Amps
- Ingress Protection Rating: IP67
- Dimensions: 10.63″L x 4.1″W x 6.44″H
- Net Weight: 11.10 lbs.
- Key Features and Benefits
- 100% duty cycle at 200 PSI for consistent high performance.
- CE intercooler head ensures efficient heat dissipation.
- Thermal overload protector prevents overheating.
- IP67-rated sealed design offers weather resistance and durability.
- Stainless steel braided leader hose and vibration isolators ensure reliability.
- Matte black filter cap cover with VIAIR logo adds a sleek appearance.
- Remote mount fittings and filter assembly included for versatile installation.
- Includes
- Thermal Overload Protector
- 485C HG Compressor
- Air Filter Assembly
- VIAIR Removable Filter Cover
- (2) Replacement Air Filter Elements
- Remote Mount Bracket
- Set of Remote Mount Fitting
- (2) Leader Hose Clips
- Heavy Duty Tube Style Fuse Holder (Up to 60-Amp fuse)
- 40-Amp Relay
- Stainless Steel Braided Leader Hose with Inline Check Valve
- Air Line (For Remote Mount Filter Installation)
- Installation Instructions
