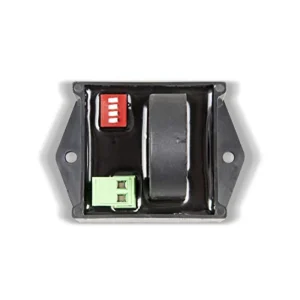

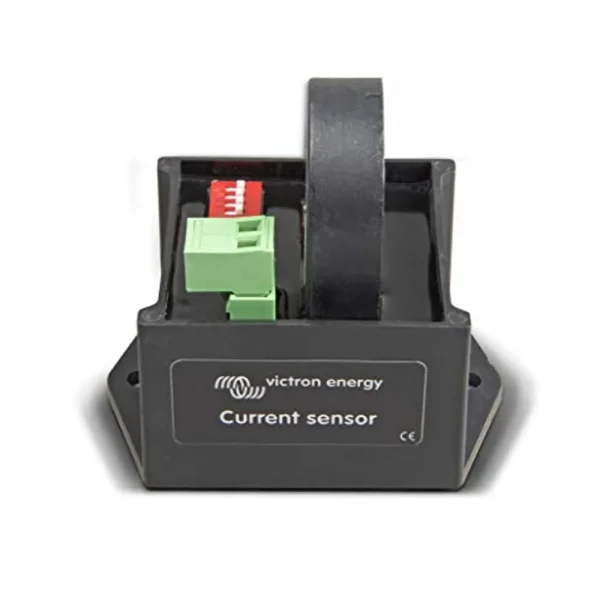

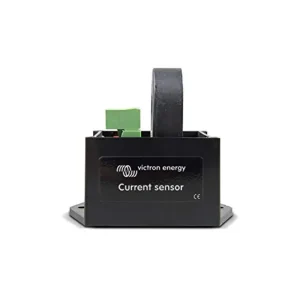

Victron Energy AC Current Sensor for Single Phase, max 40 amp
The AC Current sensor is a simple external current sensor used to measure AC Current, Power (VA) and calculate energy of a PV Inverter connected to the AC input or output of a Multi or Quattro. These values can then be displayed and sent to the VRM-website by the Color Control. The two measurement wires can be connected to the AUX and/or temperature sense input of a Multi or Quattro.
- Use the AC Current sensor to measure and visualise the solar production of a PV Inverter.
- The measurements will be visible on the GX device and on the VRM Portal.
- The sensor is a simple external current sensor, which measures AC Current. Together with the voltage measurements is calculated into Apparent Power (VA) and Energy (kWh).
- The sensor can be wired to either the AUX input or the Temperature-input of Multi and Quattro inverter/chargers.
- The AC Current Sensor is one out of multiple options to visualise the solar yield in a Victron system.
Specifications:
- Brand: Victron Energy
- Model: CSE000100000
- Length (inch): 3.15
- Width (inch): 2.76
- Height (inch): 1.97
