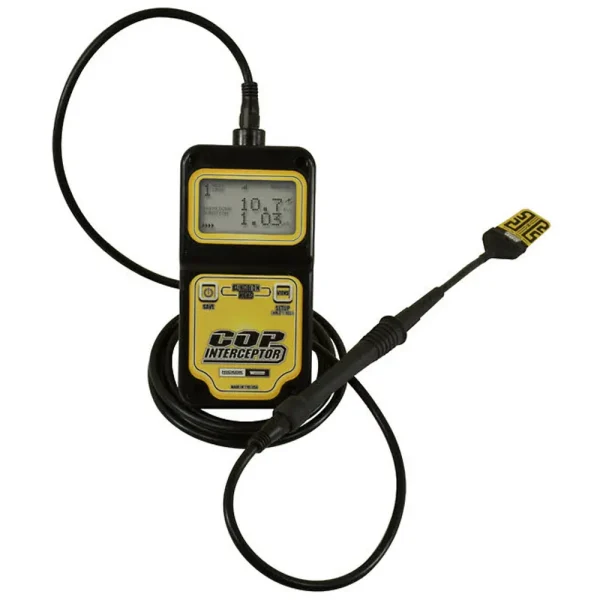

COP Interceptor – Advanced Ignition Analysis Tool
COP Interceptor – Advanced Ignition Analysis Tool
The COP Interceptor is designed to measure, display, and save secondary ignition data from each coil-on-plug system in real-time, allowing for detailed ignition analysis. Easily verify intermittent misfires visually without the need for diagnostic trouble codes.
Key Features:
- Effortless operation with only 2 buttons – simpler than an oscilloscope.
- Compatible with various styles of COP ignition systems.
- Equipped with a 9″ probe and a 2-1/2″ bendable arm.
- No need to remove the COP for analysis.
- Includes misfire counter and indicator.
- Automatic gain calibration for precise measurements.
- Provides real-time kV and mS readings.
Benefits:
- User-friendly design delivering advanced ignition data.
- Identifies intermittent issues that do not trigger Diagnostic Trouble Codes (DTC).
- Allows quick testing of COP ignition under actual operating conditions.
- Self-calibrates to ensure the most accurate data across various COP ignition systems.
- Measures secondary circuits’ breakdown voltage and arc/burn duration in real-time.
Specifications:
- Breakdown Voltage Measurement Range: +/- 30kV
- Arc Duration Measurement Range: 0.3 – 5.0 mS
- Resolution: 0.1kV and 0.01 MS
- Multi-Strike Ignition: Displays first voltage event and last mS events
- Misfire Detection: Functional from 240-4000 RPM
- Voltage Supply: 9V Battery (8-10 VDC)
Included in the Kit:
- COP Interceptor
- 9” Probe with a 2-1/2” bendable arm
- High sensitivity receiver pad
- Low sensitivity receiver pad
- 9V Battery
- Soft zipper case
