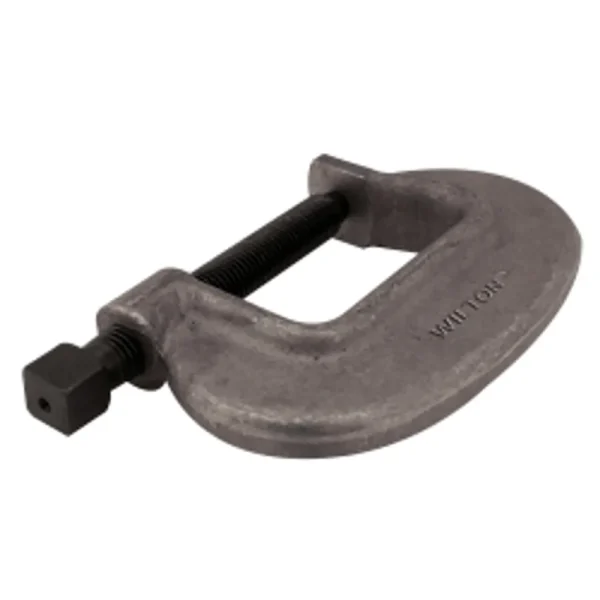

The Wilton 3-FC O Series Bridge C-Clamp w/ Full Closing Spindle (14545) is a heavy-duty clamping tool designed for industrial applications. It excels in shipbuilding, bridge building, heavy fabrication, and similar demanding tasks.
KEY FEATURES AND BENEFITS:
- Full Closing Spindle: Ensures a secure grip by allowing the clamp to close completely for maximum clamping force.
- Extra-Heavy Duty Construction: Withstands extreme forces with a drop forged frame for superior durability.
- High Clamping Force: Delivers up to 40,000 lbs of pressure to hold large or stubborn objects firmly in place.
- Durable Spindle: Hot upset square head on spindle provides superior torque resistance.
- Smooth Operation: Square-head spindle with large diameter rolled thread and hardened point ensures smooth operation and increased strength.
- Corrosion Resistance: Black oxide coated spindle protects the clamp from rust and ensures long-lasting performance.
- Lifetime Warranty: Backed by Wilton’s industry-leading lifetime warranty for user confidence.
SPECIFICATIONS:
- Jaw Opening: 0 – 3-7/16 inches
- Throat Depth: 2-1/2 inches
- Spindle Diameter: 7/8 inch
- Clamping Force (typical): 16,250 lbs
- Overall Dimensions: 1.1 x 4.7 x 7.2 inches (Height x Width x Length)
- Weight: 6.85 pounds
HOW TO USE:
- Position the C-clamp over the material to be clamped.
- Turn the square-head spindle clockwise to tighten the clamp and apply pressure.
- Adjust the clamp as needed to achieve the desired clamping force.
BENEFITS OF USING Wilton 3-FC O Series Bridge C-Clamp w/ Full Closing Spindle (14545):
- Exceptional clamping force for secure grip on large or stubborn objects.
- Full closing spindle for maximum clamping force.
- Extra-heavy duty construction for durability in demanding environments.
- Smooth operation with a focus on strength and longevity.
- Corrosion resistance for long-lasting performance.
FEATURES:
- Robust drop forged frame for superior durability.
- High clamping force of up to 40,000 lbs.
- Hot upset square head spindle for torque resistance.
- Black oxide coating for corrosion resistance.
- Lifetime warranty for user confidence.
