Yuken D08 Pilot Operated 3-Pos 120VAC P→T, A&B Block (DSHG-06-3C60-E-A120-5390)

Yuken D08 Pilot Operated 3-Pos 120VAC P→T, A&B Block Hydraulic Valve (DSHG-06-3C60-E-A120-5390) is a high-performance, 3-position pilot-operated directional valve designed to handle high flow and pressure in industrial hydraulic systems. This valve supports a maximum operating pressure of 31.5MPa (4,570 psi) and is rated for 120 V AC coil voltage.

This Yuken industrial pilot valve is designed to manage large flow rates up to 500L/min (132gal/min). It is equipped with a robust terminal box connector type and operates efficiently in a wide temperature range, ensuring stability and durability in demanding environments.

• Specifications and Dimensions
  • Coil Voltage: 120 V AC (50/60 Hz)

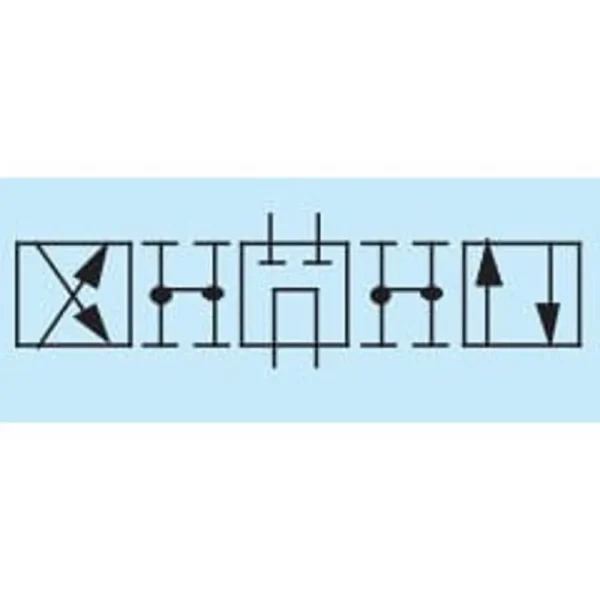

  • Spool Type: Open Center (P→T), Open Crossover
  • Max Operating Pressure: 31.5MPa (4,570 psi)
  • Max Flow Rate: 500L/min (132gal/min)
  • Weight: 27.34 lbs
  • Max Operating Temperature: 160 °F
  • Min Operating Temperature: 5 °F
  • T Port Pressure Rating: 3050 psi
• Key Features and Benefits
  • High flow and high pressure capacity for complex systems
  • Compact and robust CETOP D08 configuration
  • Supports stable flow control with P→T and A&B block functions
  • Spring-centered for balanced operations
  • Suitable for industrial hydraulic applications requiring precision
