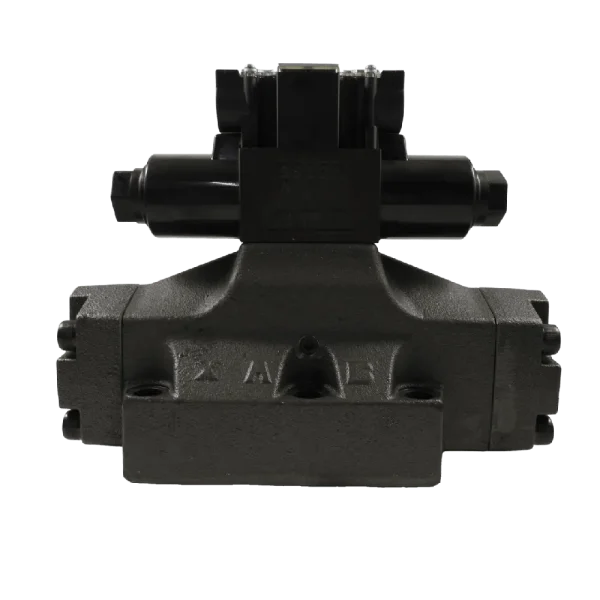

Yuken Directional Valve Pilot Operated (DSHG-06-3C40-T-D24-53)

Yuken Dir. Valve Pilot Operated (DSHG-06-3C40-T-D24-53) is a high-performance directional valve designed for industrial environments. It features a robust build, capable of handling up to 31.5MPa (4,570 psi) of pressure with a maximum flow rate of 500L/min (132 gal/min).

This Yuken high-pressure directional valve’s CETOP D08 solenoid directional 2-stage design ensures reliable and efficient performance, making it ideal for demanding applications requiring precise control and high durability.

• Specifications and Dimensions
  • US Customs Harmonized Code: 8481.20.0020
  • Country of Origin: Japan
  • Weight: 30 lbs
  • Max. Operating Pressure: 31.5MPa (4,570 psi)
  • Max. Flow Rate: 500L/min (132 gal/min)
• Key Features and Benefits
  • Robust construction for high-pressure applications
  • CETOP D08 solenoid directional 2-stage valve
  • Suitable for industrial environments
  • Handles high flow rates up to 500L/min
  • Spring-centered spool design for stability
