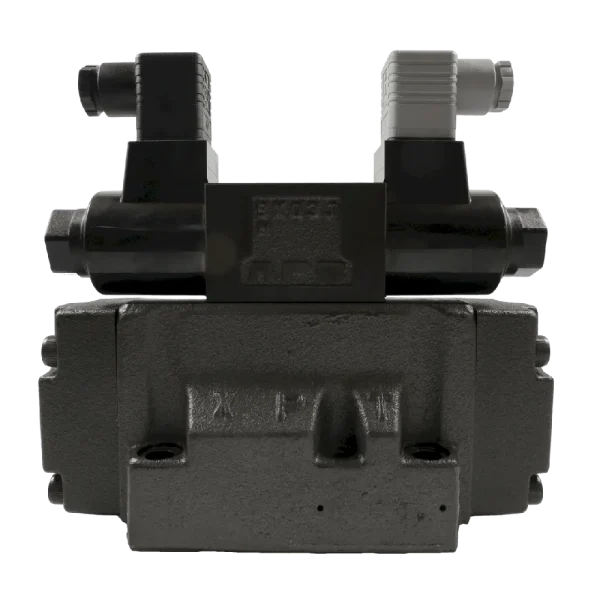

Yuken Directional Valve Pilot Operated (DSHG-06-3C9-T-R110-N-5390)

Yuken Dir. Valve Pilot Operated (DSHG-06-3C9-T-R110-N-5390) is a high-pressure hydraulic valve built for reliable directional control. This valve supports a maximum operating pressure of up to 31.5MPa (4,570psi) and a flow rate of up to 500L/min (132gal/min), making it suitable for demanding hydraulic applications.

The Yuken directional control valve provides enhanced stability and efficiency in high-flow setups. Its two-stage pilot-operated design is ideal for industries that require precise fluid management and long-lasting components to maintain hydraulic system performance.

• Specifications and Dimensions
  • US Customs Harmonized Code: 8481.20.0020
  • Country of Origin: Japan
  • Weight: 30 lbs
  • Type: CETOP D08 solenoid directional 2-stage valve – standard
  • Max. operating pressure: 31.5MPa (4,570psi)
  • Max. flow rate: 500L/min (132gal/min)
• Key Features and Benefits
  • High-pressure capacity up to 31.5MPa for demanding hydraulic applications
  • Supports a maximum flow rate of 500L/min for high-flow systems
  • Manufactured in Japan to meet high-quality standards
  • Two-stage design for precise directional control
  • Conforms to CETOP D08 standards for easy integration
