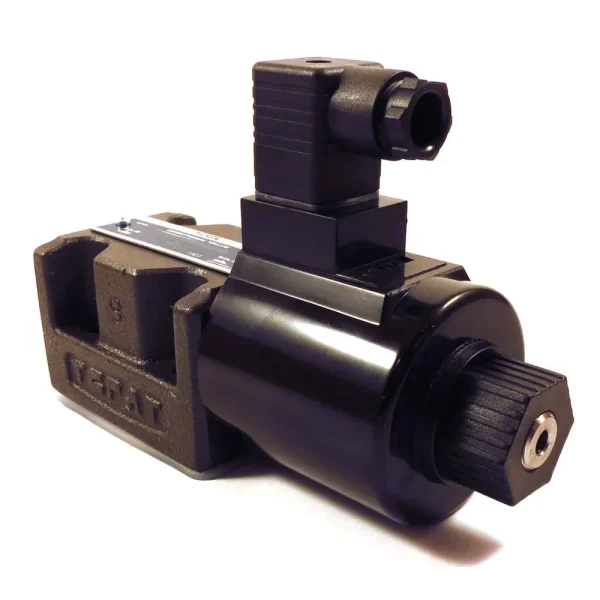

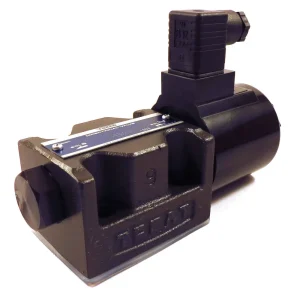

Yuken Directional Valve Solenoid Operated 2-Position 12 VDC DIN (DSG-03-2B3-D12-N-50)

Yuken Directional Valve Solenoid Operated 2-Position 12 VDC DIN (DSG-03-2B3-D12-N-50) is engineered for high pressure and high flow applications in demanding industrial systems. This valve offers reliable directional control, featuring a 2-position configuration and DIN mounting, making it ideal for complex hydraulic systems.

The Yuken directional valve is part of the DSG-03 series, known for its robust design and wet-type solenoid, which minimizes noise and prevents oil leakage, enhancing the valve’s lifespan. This valve is suitable for a wide range of hydraulic applications, including manufacturing, machinery, and automation systems.

• Specifications and Dimensions
  • US Customs Harmonized Code: 8481.20.0020
  • Country of Origin: Japan
  • Weight: 8.2 lbs
  • Type: Solenoid Operated Directional Valve
  • Series: DSG-03
  • Flow: 120 L/min (31.7 U.S. GPM)
  • Solenoid Type: Wet Type
• Key Features and Benefits
  • High-pressure capacity up to 31.5 MPa (4570 PSI)
  • DIN standard configuration for versatile installation
  • Minimized operational noise with a wet-type solenoid design
  • Prevents oil leakage for extended lifespan and reduced maintenance
  • Handles high flow rates up to 120 L/min (31.7 U.S. GPM)
  • Shockless type available for reducing noise and vibration
