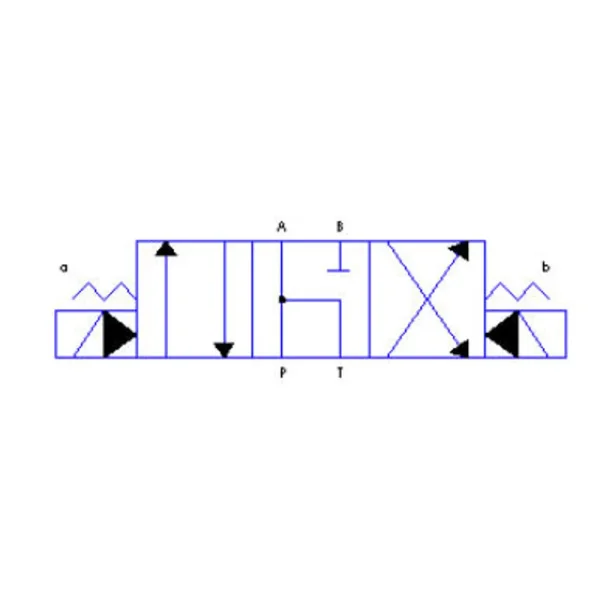

Yuken Directional Valve Solenoid Operated (DSG-03-3C5-A120-5090)

Yuken Directional Valve Solenoid Operated (DSG-03-3C5-A120-5090) is engineered for superior performance in high-pressure and high-flow hydraulic systems. It features a robust design to ensure stability and minimal noise, making it suitable for demanding industrial applications.

The DSG-03 series by Yuken is equipped with wet-type solenoids to prevent oil leakage, enhancing durability and extending the operational life of the valve. With a maximum pressure rating of 31.5 MPa (4570 PSI) and a flow capacity of 120 L/min (31.7 U.S.GPM), it is built for reliable performance in a wide range of systems.

• Specifications and Dimensions
  • US Customs Harmonized Code: 8481.20.0020
  • Country of Origin: Japan
  • Weight: 7.94 lbs
  • Flow Capacity: 120 L/min (31.7 U.S.GPM)
  • Maximum Pressure: 31.5 MPa (4570 PSI)
• Key Features and Benefits
  • High-pressure performance up to 31.5 MPa (4570 PSI).
  • Shockless type minimizes noise and vibration during spool changeover.
  • Wet-type solenoid prevents oil leakage and extends product life.
  • High flow capacity of 120 L/min for heavy-duty operations.
  • Durable construction ensures stability and longevity.
