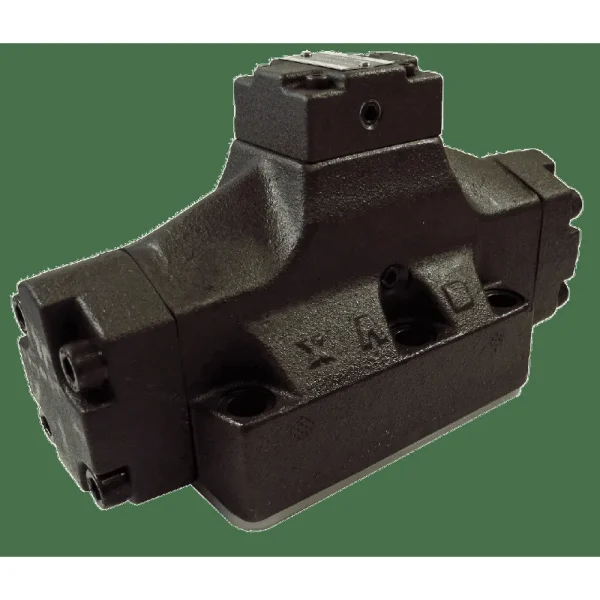

Yuken Pilot Operated Directional Valve (DHG-06-3C4-5090) offers precise flow management for high-pressure hydraulic systems. Built to handle demanding industrial applications, this directional valve operates at a maximum pressure of 31.5MPa (4,570psi) and supports flow rates up to 1,100L/min (291 gal/min).
Designed with a pilot-operated, solenoid design, the Yuken directional valve is suitable for complex hydraulic systems. Its CETOP D07, D08, and D10 compliance ensures compatibility with various setups, providing a robust solution for reliable system control.
- Specifications and Dimensions
- US Customs Harmonized Code: 8481.20.0020
- Country of Origin: Japan
- Weight: 25 lbs
- Max. operating pressure: 31.5MPa (4,570psi)
- Max. flow rate: 1,100L/min (291 gal/min)
- Standards: CETOP D07, D08, D10
- Max. operating temperature: 160 °F
- Min. operating temperature: 5 °F
- Spool Type: Open Center (A, B & T)
- Spring Arrangement: Spring Centered
- T Port Pressure Rating: 3,050 psi
- Actuation Type: Pilot
- Electrical Connector Type: Terminal Box
- Key Features and Benefits
- Efficient flow control with a pilot-operated, solenoid design
- Meets CETOP standards for versatile system compatibility
- Supports a wide range of temperature conditions (5°F – 160°F)
- Spring-centered spool design for precise control
