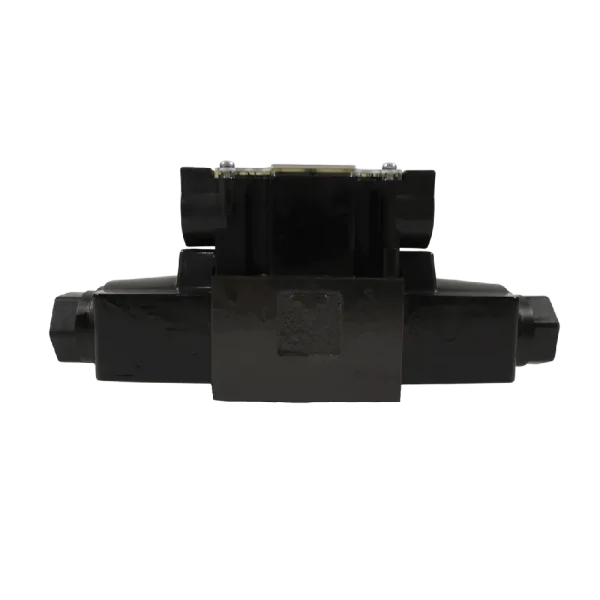

Yuken Solenoid Operated Directional Valve 35MPa Max Pressure (DSG-01-3C3-R220-7090)

Yuken Solenoid Operated Directional Valve (DSG-01-3C3-R220-7090) offers precise hydraulic control, capable of handling up to 35MPa (5,080psi) pressure. Engineered for high efficiency, this valve allows a maximum flow rate of 100L/min (26.4gal/min), making it a reliable choice for various industrial hydraulic applications.

This Yuken solenoid directional valve features a manual override pin, providing flexibility in operation when needed. Built to CETOP D03 standards, it ensures high compatibility with standard hydraulic systems and delivers robust, consistent performance for critical operations.

• Specifications and Dimensions
  • US Customs Harmonized Code: 8481.20.0020
  • Country of Origin: Japan
  • Weight: 4.8 lbs
  • Max. operating pressure: 35MPa (5,080psi)
  • Max. flow rate: 100L/min (26.4gal/min)
  • Manual Override Type: Manual Override Pin
• Key Features and Benefits
  • Allows up to 100L/min flow rate for enhanced system performance
  • Handles high pressure of up to 35MPa for demanding applications
  • Equipped with manual override pin for ease of operation
  • Built to CETOP D03 mounting standards for easy system integration
