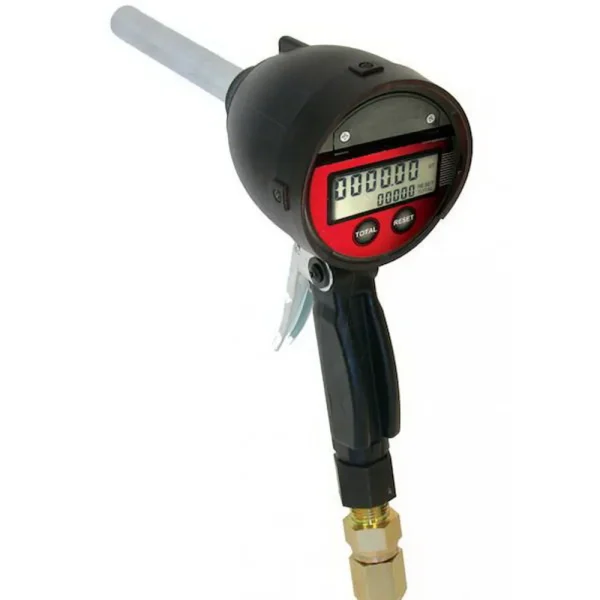

Zeeline Digital Meter: Non-Preset (ZE1509)

Features:

• Resettable dispenser
• Non-resettable totalizer
• Cast aluminum housing
• Scratch resistant oven baked epoxy finish
• Easy to read 6 digit LCD with .01 increment
• Long life field replaceable top load battery (CR123A)

Specifications:

• Dispenses: Pints, Quarts, Liters, and Gallons
• Totalizes: Liters and Gallons
• Units- Graduation: 2 decimals
• Inlet/Outlet: 1/2″ NPT
• Min/Max Flow Rate: 0.40/4.0 GPM
• Min/Max Temp.: -4° F/140° F
• Min/Max PSI: 5/1500 PSI
• Accuracy: ±0.5%
• Face Diameter/Width: 4″
• Nozzle: 1/2″ Pipe w/Auto Non-Drip (1340)
• Swivel: 1/2″ NPT (1101)
