- 650-watt drive motor, 2,200-watt lift motor.
- Perfect for approaching racks and trucks, as there are no straddle legs to obstruct to close approach.
- With upright walking function, especially suitable for narrow aisle.
- 2 minutes will replacement thanks to the wheel because of the upper horizontal structure design.
- 4-5 hours service per charge: two 12-volt, 105 Ah rechargeable GEL batteries
- 110V Built-in charger.
*Counterbalaced Electric Stackers
| Model No. |
Description |
Load Capacity |
Height Lowered |
Height Raised |
Wheel Diameter |
Wt (Lbs) |
Price |
| A-3031 |
Light duty stacker |
1,200 lbs |
1.38” |
118” |
7.7”/5.9” |
1,920 |
$7,447 |
| A-3032 |
Heavy duty stacker |
3,300 lbs |
1.38” |
177” |
9.8”/7.9” |
4,580 |
$15,397 |
| A-3040 |
Medium duty stacker |
2,200 lbs |
1.38” |
118” |
7.7”/5.9” |
2,601.45 |
$8,447 |
| A-3043 |
Medium duty stacker |
2,200 lbs |
1.38” |
98” |
7.7”/5.9” |
$8,147 |
*Ships Assembled Via Motor Freight
*Replacement Parts
| Model No. |
Battery Type |
Battery Capacity |
Wt (Lbs) |
Dimensions |
Price Each |
2 Pcs Price |
| S-1005 |
Gel Battery |
24V/105AH |
115 |
10.2×6.6×8.5” |
$600 |
$1,150 |

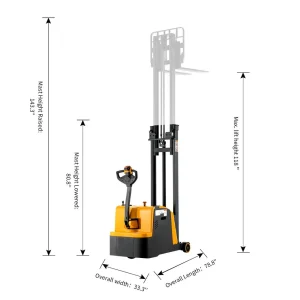

Dimensions:
- Overall Length_78.8”
- Overall Width: 33.3”
- Recommended Aisle Width_108.3”/ 9 feet
- Turning Radius:46”
- Load Center: 15.7”
- Gradeability(laden/unladen):6%/10%
Mast:
- Mast Height Lowered: 80.8”
- Mast Lifting Height: 118”
- Mast Height Raised: 143.3”
- Mast tilt(forward/backward):1°/3°

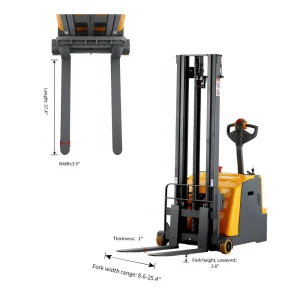

Forks:
- Thickness: 1”
- Width:3.9”
- Length: 33.3”
- Fork width range: 8.6-25.4”
Features:
- Long handle structure makes truck steering light and flexible
- Thoughtful mast design for wide viewing angles
Speed:
- Lifting speed(laden/unladen) : 6.7/9.8 mile/s
- Lowering speed(laden/unladen) : 5.5/5.5 mile/s
- Travel speed(laden/unladen):2.5/2.8 mph
Specifications:
- Not explosion proof.
- This truck is designed to be used on flat ground, avoiding uneven grounds with potholes or large ramp.
- Normal Ambient temperature shall not be higher than +104°F and no lower than -13°F.
- Fully charge battery before use to avoid damaging cells.
- Charger plugs into standard 110V-120V outlets.
- Charge the truck once a month even it’s not in use.
- Time to fully charge battery: 8 – 10 hrs
