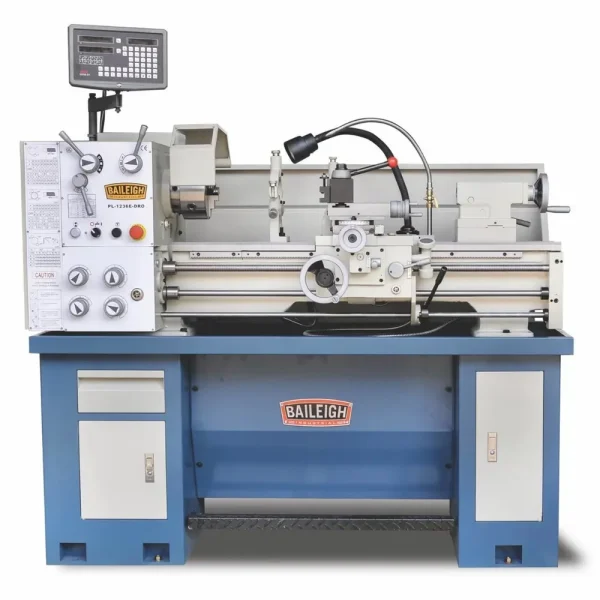

Baileigh 220V 1 Phase Lathe with 12″ Swing and 36″ Length Digital Readout (1006617) is designed for precision and efficiency. Equipped with a 70 to 1,400 rpm variable speed, the integrated digital readout (DRO) ensures repeatable results for every project. The quick-change tool post allows for efficient tooling changes.
This versatile metal lathe dro is perfect for small fabricators, schools, or garage workshops, offering a range of features to meet your machining needs. The gear system supports taping, turning, and polishing, while the ground and hardened ways guarantee a long life.
- Specifications and Dimensions
- Length: 69 in.
- Width: 44 in.
- Height: 62 in.
- Net Weight: 1420 lbs
- Spindle Bore: 1.50″
- Spindle Bore Taper: Morse #5
- Sleeve Taper: Morse #3
- Range of Inch Threads: 4 – 56 T.P.I.
- Spindle Nose: D1-4″
- Travel of Cross Slide: 5.312″
- Travel of Top Slide: 3.250″
- Width of Bed: 7.125″
- Spindle Speed: 70 – 1400 rpm
- Swing Over Bed: 12″
- Swing Over Cross Slide: 7.625″
- Distance Between Centers: 36″
- Power: 220V / 1-phase
- Key Features and Benefits
- Integrated digital readout (DRO) for precise adjustments.
- Quick-change tool post for efficient operation.
- Capable of standard and metric threading.

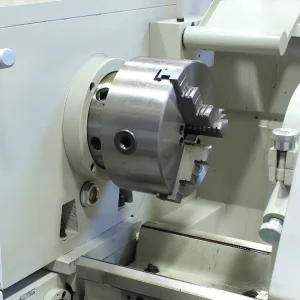

- 3-jaw and 4-jaw chucks for versatile material holding.
- Steady rest and follow rest to prevent wobbling.
- Coolant system with a reservoir and pump.
- Foot brake for enhanced safety.
- Halogen work light included.
- 1-year parts warranty and lifetime technical support.
