Availability: 6 in stock

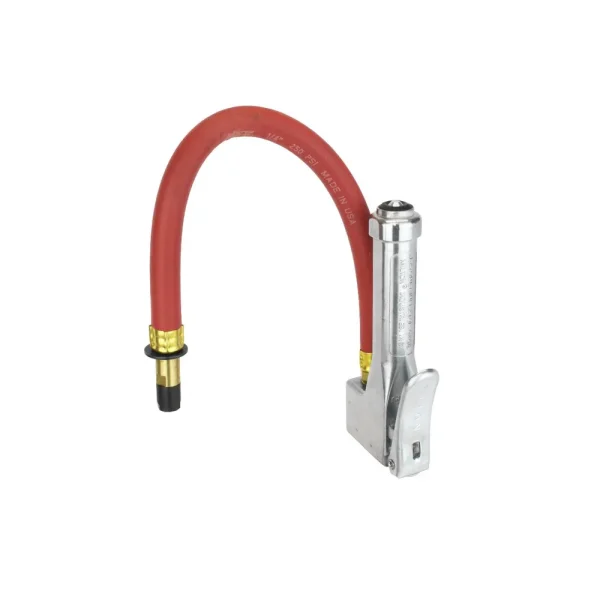

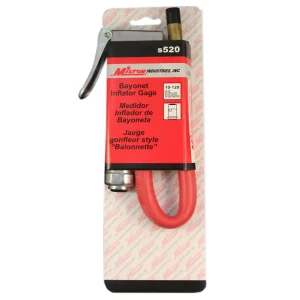

Milton® #520 Straight head chuck bayonet gauge has lever action and is made with heavy-duty construction, providing long service life even with constant use. Valve and gauge cartridges are replaceable and combined in one easy unit. Includes a 12″ hose with a pressure range that offers 10-120 PSI (2-lb. increments) or 80-840 kPa (20 kPa increments). The air chuck has 1/4” Barb threads. Complete with a jumbo white nylon indicator bar for easy reading.
With ¼” NPT threads, all Milton® hose whips are compatible for use and have interchangeable connections with any of the 4 Milton® Bayonet Inflator Gauge bodies: #520 (straight chuck head), #521 (single chuck head), #522 (dual truck head chuck), and #523 (grip chuck head to lock onto valve).
Recommended Replacement Parts:
S-520’s replacement air hose whip: Milton®#528 (12-inch hose whip w/straight chuck head).
S-520’s replacement air chuck:Milton®#P500-45.
Replacement cartridge for #520-523: Milton®#525.
| Gauge Type | Bayonet style inflator gauge |
| Group Product Package Type | Retail Box of 5 |
| Height | 1 |
| Hose Length | 12 in. Hose |
| KPA Range | 80 to 840 kpa in 20 kpa units |
| Length | 15 |
| MP Exclude Sitemap | No |
| Number of Items | 5 |
| PSI range | 10 – 120 lbs in 2 lb. Increments |
| Short Description |
Milton®(S-520) Bayonet Tire Inflator Gauge – Straight Air Chuck Head, 120 Max PSI |
| UPC | 30937005205 |
| Width | 2.75 |
