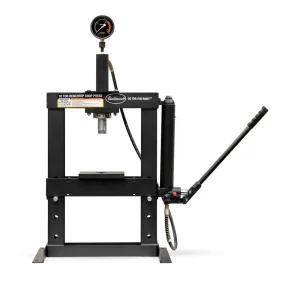

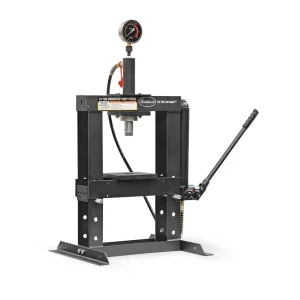

The Eastwood 10 Ton Hydraulic Bench Press is excellent for many mechanical procedures requiring a strong linear pressing force for disassembly or assembly operations.
This Bench Press has a generous 6.88” Ram Stroke and adjustable 4.3 to 14.3” vertical working range can easily accommodate many ball joint, u-joint, bearing, bushing and gear pressing projects.
1 Year
| Hydraulic Pump Capacity: | 10 Tons (20,000 lbs.), [9071 kg] maximum |
| Hydraulic Ram Stroke: | 6.88″ [175 mm] |
| Vertical Working Range: | 4.3 to 14.3 [109-363mm] |
| Arbor Depth: | 4.33″. [110mm] |
| Horizontal Working Capacity: | 4.31″ x 13.38″. [110mm x 340mm] |
| Force Gauge units: | 0-18 U.S. Tons, 0-16 Metric Tons |
| Ram Size: | 40mm |
| Workpiece Plate Construction: | 20mm Steel, Black Powdercoat |
| Frame Construction: | 7mm Welded Steel, Black Powdercoat |
| Workpiece Support Pins Construction: | 18mm Steel, Zinc Plated |
Ships via UPS
Contents
(1) Main Frame
(2) Base Rails
(1) Hydraulic Pump Unit
(1) Pump Handle
(1) Upper Yoke Plate (thinner)
(1) Lower Yoke Plate (thicker with locating pins)
(1) Ram
(1) Force Gauge
(1) Nylon Seal
(2) Table Support Pins
(1) Table
(2) Arbor Plates
Hardware
(3) M8 x 1.25 x 16mm Bolts
(3) M8 Washers
(2) M10 x 1.5 x 110mm Shoulder Bolts
(4) M10 x 1.5 x 25mm Bolts
(4) M10 Nuts
(6) M10 Washers
(4) M10 Lock Washers
