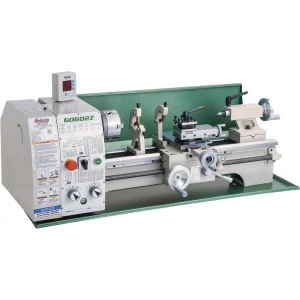

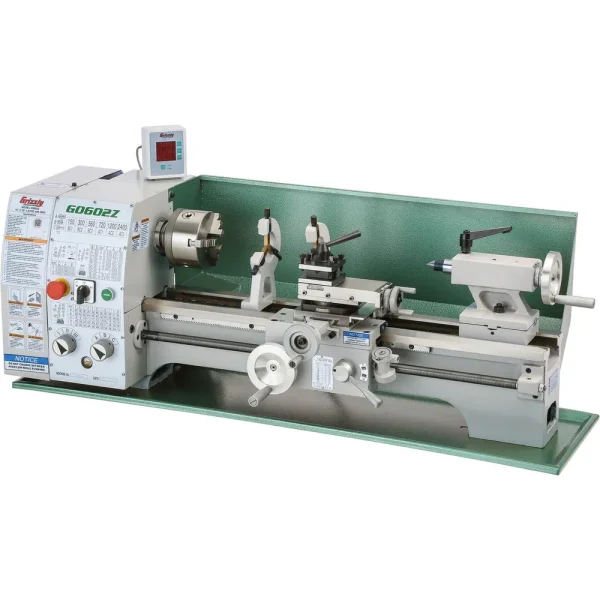

Grizzly Industrial 10″ x 22″ Benchtop Metalworking Lathe with DRO (G0602Z) offers precision and versatility in a compact design. Ideal for workshops and hobbyists, this lathe features a magnetically mounted X/Z-axis DRO with 0.001-inch resolution, ensuring accuracy for even the most intricate projects.
Designed to handle a variety of tasks, this lathe is equipped with an enclosed oil-bath gearbox for efficient lubrication and quiet operation. Its quick-locking tailstock, inch/metric dials, and thread dial simplify threading and general machining. Safety features like the emergency stop button and a chip tray keep your workspace clean and secure.
- Specifications and Dimensions
- Motor: 1 HP, 110V, single-phase 13.6A
- Swing over bed: 9-1/2″
- Swing over cross slide: 6-1/8″
- Swing over saddle: 6-1/8″
- Distance between centers: 22″
- Bed width: 6-1/8″
- Spindle speeds: (6) 150–2400 RPM
- Spindle bore: 25mm
- Spindle type: Threaded, 1-3/4″ x 8 TPI
- Spindle taper: MT#4
- Tailstock taper: MT#3
- Tailstock quill travel: 2-1/2″
- Cross slide travel: 6-1/2″
- Compound travel: 3-1/2″
- Maximum tool bit size: 1/2″
- Leadscrew: 3/4″ x 12 TPI
- Longitudinal feeds: (9) 0.0025, 0.0140 in./rev.
- Inch thread range: (31) 8–72 TPI
- Metric thread range: (26) 0.25–3.50mm
- Overall dimensions: 46″ W x 22″ D x 21″ H
- Approximate shipping weight: 432 lbs.

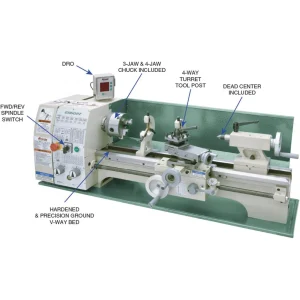

- Key Features and Benefits
- X/Z-axis DRO with 0.001-inch resolution for precise cuts
- Hardened and ground V-ways ensure smooth operation
- Six spindle speeds ranging from 150–2400 RPM
- Quick-locking tailstock for secure adjustments
- Includes
- 5″ Three-jaw scroll chuck with two sets of jaws
- 6-1/2″ Four-jaw independent chuck with reversible jaws
- 8″ Faceplate
- 4-Way turret tool post
- MT#3 and MT#4 dead centers
- Set of change gears
- Follow rest and steady rest
- Toolbox with service tools
