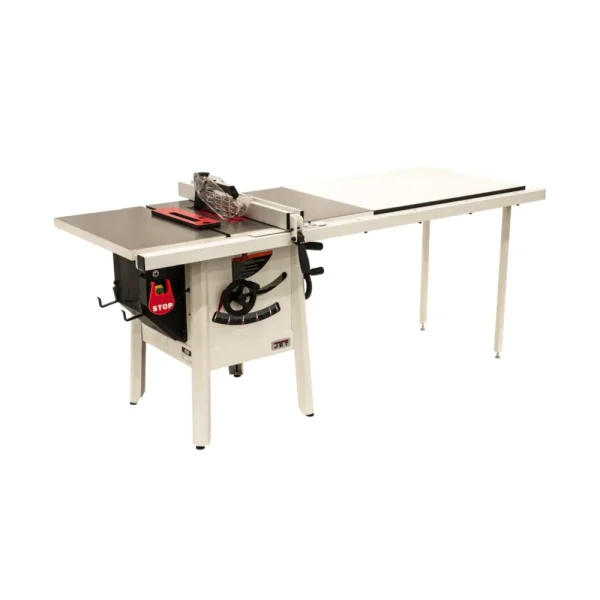

The Jet JPS-10 1.75 HP 115V 52″ Proshop Tablesaw with Cast wings (725001K) is a contractor-style saw offering features found on high-end cabinet saws. Its compact design makes it ideal for workshops with limited space.
KEY FEATURES AND BENEFITS:
Powerful Performance: 1.75 HP motor delivers ample power for ripping hardwoods and other challenging cuts.
Exceptional Rip Capacity: Features a best-in-class 52-inch cast iron fence system for ripping wide boards.

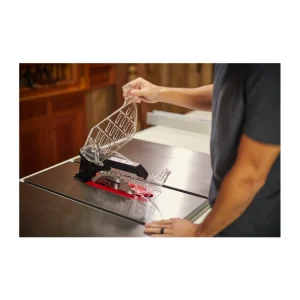

Safety First Design: Includes a quick-release riving knife to prevent kickback and a redesigned transparent blade guard for better dust collection and cutline visibility.
Improved User Experience: Features a convenient magnetic paddle switch, on-board storage for accessories, and a newly designed arbor lock for quick blade changes.
Durable Construction: Cast iron table ensures stability and precision during cuts.
SPECIFICATIONS:
Style: Contractor Saw
Blade Diameter: 10 inches
Arbor Diameter: 5/8 inches
Arbor Speed: 4000 RPM
Maximum Depth of Cut (Straight): 3-1/8 inches
Maximum Depth of Cut (45 Degrees): 2-1/8 inches
Maximum Rip Capacity (Left of Blade): 13-1/2 inches
Maximum Rip Capacity (Right of Blade): 52 inches
Table Size (Without Extensions): 20 x 27 inches
Table Size (With Extensions): 44 x 27 inches
Table Type: Cast Iron
Table Height: 34-3/4 inches
Dust Collection Port Diameter: 4 inches
Motor Power: 1-3/4 horsepower
Motor Phase: Single-phase
Motor Voltage: 115 volts
Motor Amps: 7.4 amps
Recommended Circuit Size: 10 amps (Note: Some retailers recommend a 20 amp circuit)
Warranty: 5 years
HOW TO USE:
Assembly: Refer to the included manual for detailed assembly instructions.
Blade Installation: Secure the desired blade using the newly designed arbor lock.
Adjustments: Set the fence, rip capacity, cutting depth, and blade angle according to your project requirements.
Safety First: Always wear safety glasses and a dust mask when operating the saw.
Power On: Turn on the saw using the magnetic paddle switch.
Making Cuts: Feed the material slowly and steadily against the fence for straight cuts.
Dust Collection: Connect a dust collection system (not included) to the 4-inch dust port for improved dust control.
Blade Changes: Loosen the arbor lock, remove the old blade, and install the new blade.
BENEFITS OF USING THE JET JPS-10 1.75 HP 115V 52″ PROSHOP TABLESAW WITH CAST WINGS (725001K):
Versatility: Handles a wide range of woodworking projects from ripping wide boards to making precise cuts.
Space-Saving Design: Compact size makes it ideal for workshops with limited space.
Precision Cutting: Delivers clean and accurate cuts thanks to the cast iron table and high-quality features.
Safety Features: Provides safety features like a riving knife and blade guard to minimize the risk of injury.
User-Friendly Design: Easy to use with convenient features like a magnetic paddle switch and on-board storage.
FEATURES:
1.75 HP motor
10-inch diameter blade
52-inch rip capacity cast iron fence system
Cast iron wings
Quick-release riving knife
Low profile riving knife for non-through cuts
Magnetic paddle switch for safe operation
Improved dust shroud around blade for greater dust collection
Innovative single belt design for easier belt tensioning and reduced vibration
Redesigned arbor lock for quicker and easier blade changes
On-board storage for all included accessories
Redesigned guard for better protection and ease of use
