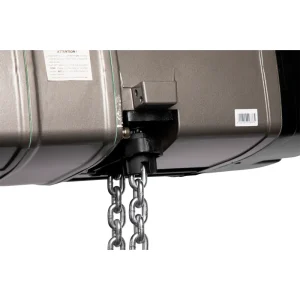

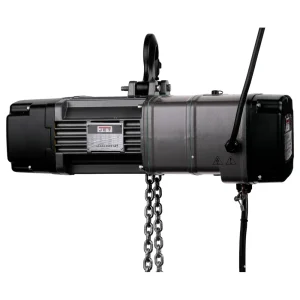

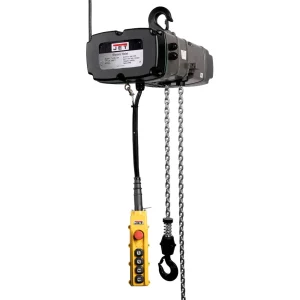

Jet TS200-040 3PH 2-Ton Electric Hoist w/ 40′ Lift (140097) is a reliable and powerful lifting equipment designed for industrial applications. Built with safety and efficiency in mind, this hoist offers a range of features to ensure optimal performance and operator protection.
KEY FEATURES AND BENEFITS:
- Safe Operation: Equipped with a mechanical brake, overload protection, and DC motor brake for enhanced safety.
- Precise Control: Patented gear limit switch allows for accurate lifting and lowering.
- Efficient Lifting: Two-speed motor provides flexibility for various lifting tasks.
- Durable Construction: IP55 TEFC motor and Class F insulation withstand harsh working conditions.
- Easy Operation: Pendant control for convenient operation.
SPECIFICATIONS:
- Capacity: 2 Tons (4400 lbs)
- Lift Height: 40 Feet
- Power Supply: 3-Phase, 230V
- Motor: 1.5 HP
- Lifting Speeds: 32 ft/min and 8 ft/min
- Duty Cycle: H4 (40% at 20 minutes)
- Dimensions: Length: 37.008 inches, Width: 27.165 inches, Height: 23.622 inches
- Net Weight: 369 lbs
HOW TO USE:
- Inspect the hoist: Check for any visible damage or wear and tear before use.
- Connect the power supply: Ensure the power supply is properly connected to a grounded outlet.
- Attach the load: Securely attach the load to the hoist hook using appropriate lifting chains or slings.
- Operate the pendant control: Use the up and down buttons to lift or lower the load.
- Monitor the load: Continuously observe the load during lifting and lowering operations.
- Lower the load: Carefully lower the load to the desired position.
- Disconnect power: Turn off the power supply after use.
BENEFITS OF USING Jet TS200-040 3PH 2-Ton Electric Hoist w/ 40′ Lift (140097):
- Increased productivity due to efficient lifting and lowering speeds.
- Enhanced safety with multiple safety features.
- Durable construction for long-lasting performance.
- Precise control for accurate load placement.
- Easy to operate with pendant control.
FEATURES:
- Mechanical brake and overload protection
- Patented gear limit switch
- DC motor brake
- Two-speed motor
- IP55 TEFC motor with Class F insulation
- 5 pocket chain sprocket
- Pendant control
- Built-in heat protection
