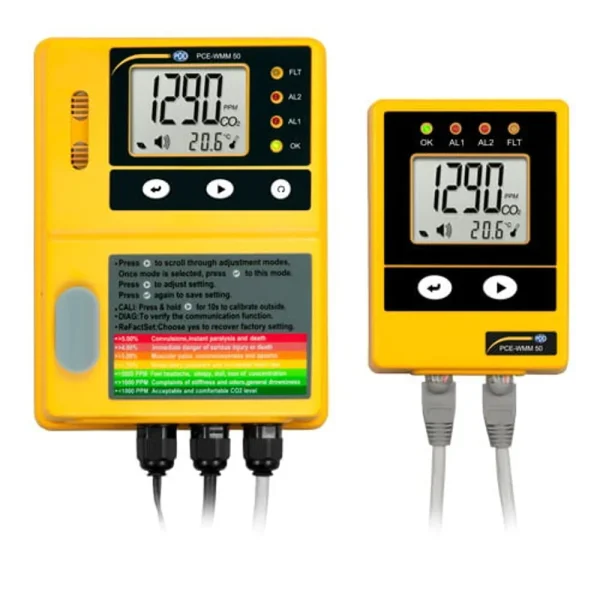

PCE Instruments Carbon Dioxide Meter (PCE-WMM 50) is a fixed wall-mounted CO2 detection system designed for monitoring carbon dioxide concentrations in indoor environments. With a built-in temperature sensor and adjustable alarm settings, this device ensures safety in workplaces where CO2 exposure is a risk.
The CO2 meter features a two-part system: a sensor unit and a remote display unit, allowing safe monitoring outside of hazardous zones. The device includes an alarm-activated potential-free contact, enabling the activation of ventilation or other safety measures when carbon dioxide levels exceed set thresholds.
- Specifications and Dimensions
- CO2 Measurement Range: 0 – 50,000 ppm (5%)
- CO2 Sensor Type: NDIR sensor
- Temperature Measurement Range: 0 – 45°C / 32 – 113°F
- Alarm Thresholds: Two adjustable alarms (0.5 – 4%)
- Alarm Activation: Potential-free relay contact
- Alarm Signals: Audible and visual alerts
- Display: 3- to 4-digit LCD for CO2 and temperature values
- Power Supply: 100 – 240 V AC, 50/60 Hz
- Sensor Unit Dimensions: 168 x 125 x 47 mm / 6.62 x 4.93 x 1.85″
- Remote Display Unit Dimensions: 118 x 85 x 34 mm / 4.65 x 3.35 x 1.34″
- Protection Class: IP54-rated enclosure
- Key Features and Benefits
- Continuously monitors carbon dioxide concentrations and temperature
- Two-part system with sensor and remote display for safer monitoring
- Adjustable alarm thresholds to trigger ventilation or safety measures
- Large LCD screen provides real-time CO2 readings
- Ideal for workplaces, laboratories, and confined spaces
- Water-resistant IP54-rated enclosure for durability
- Operates with a wide power supply range (100 – 240 V AC)
- Includes
- 1 x PCE-WMM 50 Carbon Dioxide Meter (Sensor Unit and Remote Display)
- 1 x Power Adapter
- 1 x User Manual
