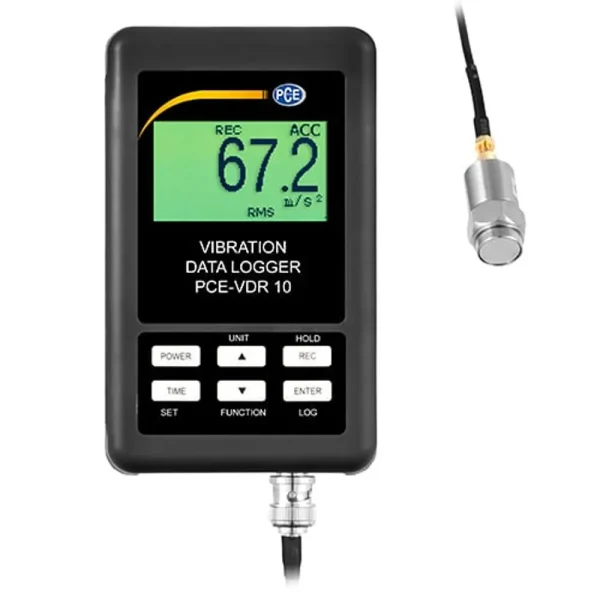

PCE Instruments Single-Axis Vibration Recorder (PCE-VDR 10) is a professional tool designed for vibration monitoring and analysis in industrial applications. This device records acceleration and speed measurements with real-time data logging.
Equipped with an SD card for storing measured values, this vibration recorder allows users to analyze data in Microsoft Excel. The device features an adjustable data logging interval, backlit LCD screen, and RS-232 and USB connectivity, ensuring precise and efficient vibration measurement for various applications.
- Specifications and Dimensions
- Frequency Range: 10 … 1000 Hz
- Acceleration Measurement: 0.5 … 199.9 m/s, 0.05 … 20.39 g, 2 … 656 ft/s
- Speed Measurement: 0.5 … 199.9 mm/s, 0.05 … 19.99 cm/s, 0.02 … 7.87 in/s
- Resolution: 0.1, 0.01, 1
- Accuracy: ±(5% of reading + 2 digits)
- Display: Backlit LCD with 1-second update rate
- Memory: SD card (included)
- Data Logging Interval: Adjustable from 5 to 3600 seconds
- Analog Output: 4 … 20 mA
- Power Supply: 6 x 1.5 V AAA batteries or 9V DC adapter (sold separately)
- Interfaces: RS-232 and USB for data transfer
- Device Dimensions: 132 x 80 x 32 mm (5.20 x 3.15 x 1.26″)
- Key Features and Benefits
- Measures acceleration and speed for comprehensive vibration analysis
- Real-time monitoring with SD card data logging
- Adjustable logging interval for flexible data collection
- RS-232 and USB interfaces for efficient data transfer
- Backlit LCD for clear readings in various environments
- Portable design with battery operation for field use
- Ideal for predictive maintenance and fault diagnosis
