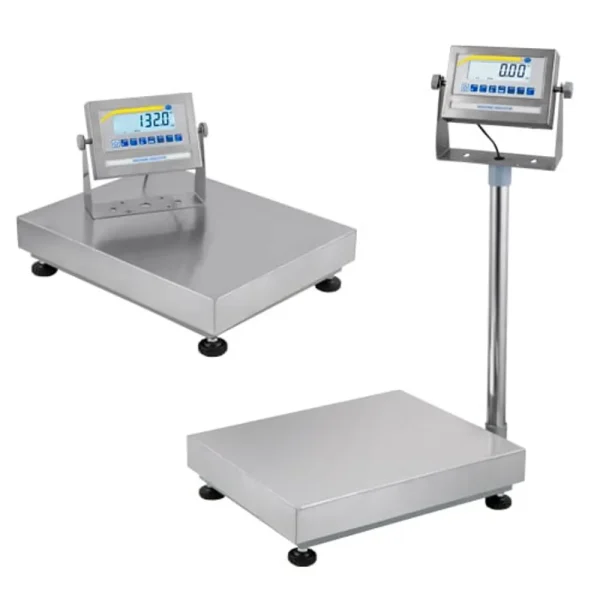

PCE Instruments Industrial Platform Scale (PCE-EP 30P2) is a versatile and high-precision weighing solution for industrial and logistics applications. This dual-range scale provides accurate measurements for packages and shipments up to 30 kg. It features a bidirectional RS232 interface for easy data transfer, a counting function, and a detachable tripod mount for maximum flexibility.
The shipping scale supports key functions such as peak hold, summing, and gross/net weighing. Designed with durable stainless steel display housing and IP54 protection, it is built to withstand industrial environments.
- Specifications and Dimensions
- Measuring Range: Max. 1 = 15 kg / Max. 2 = 30 kg
- Resolution: Up to 15 kg = 2 g; 15 kg – 30 kg = 5 g
- Measurement Uncertainty: ± 3 d
- Platform Size: 500 x 600 mm
- Tare Function: Over the entire weighing range
- Interface: RS232 Bidirectional / D-SUB 9 Female
- Optional Outputs: 4-20 mA analog, 4 potential-free outputs (LO/OK/HI/Stability)
- Display: LCD with 25 mm digit height
- Units: kg / lb (freely adjustable)
- Cable Length: Approx. 160 cm (with attached plug)
- Power Supply: 6V / 4.5Ah battery or 9V / 1.2A power adapter (included)
- Power Consumption: 70 mA
- Protection Class: IP54
- Operating Temperature: 0 … +40°C / 10 … 80% RH
- Weight: Approx. 25.5 kg
- Key Features and Benefits
- Dual-range weighing for precise shipping measurements
- Bidirectional RS232 interface for efficient data transfer
- Battery or mains operation for flexible use
- Includes
- 1 x Shipping Scale PCE-EP 30P2
- 1 x Display (with battery)
- 1 x Tripod with bracket
- 1 x Power adapter
- 1 x User manual
