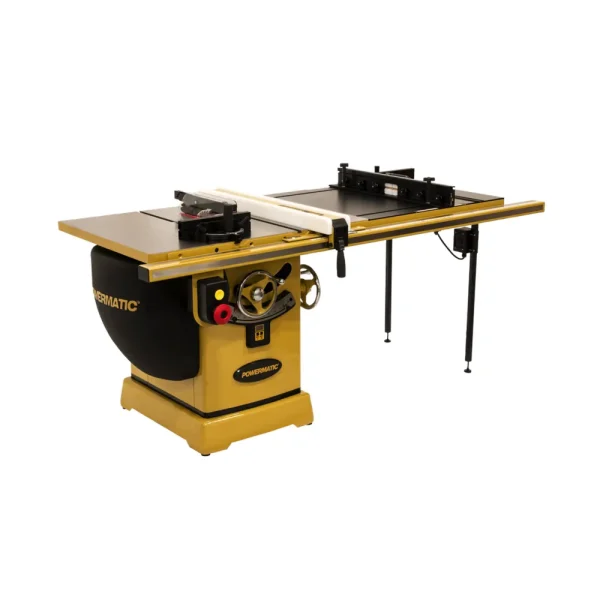

The Powermatic 2000B 5HP 1PH 50″ RIP Table Saw Router Lift (PM25150RK) is a professional-grade cabinet saw designed for precision and durability. Packed with innovative features, it boasts a powerful 5-horsepower motor that tackles tough cuts with ease. The large 10-inch diameter blade provides ample cutting depth for various woodworking projects. With a rip capacity of a whopping 50 inches, the PM25150RK handles oversized materials without breaking a sweat.
KEY FEATURES AND BENEFITS:
- Unmatched Precision and Control: The cast iron tables are oversized for stability, ensuring accurate cuts. The Accu-Fence system and digital readout enhance rip and bevel cut precision.
- Enhanced Efficiency and User Experience: Quick and easy blade changes with the arbor lock lever, improved dust collection system, and quick-release riving knife for safety.
- Built for Smooth Operation and Durability: Wide stance and heavy-duty box trunnion design for stability, Poly-V drive belt system for quiet operation, and integrated hydraulic caster system for mobility.
- Safety Features: Proprietary safety switch with magnetic interlock and knee-activated stop button.
SPECIFICATIONS:
- Style: Cabinet
- Blade Diameter: 10 inches
- Arbor Diameter: 5/8 inches
- Arbor Speed: 4500 RPM
- Maximum Depth of Cut (90°): 3-1/8 inches
- Maximum Depth of Cut (45°): 2-1/8 inches
- Maximum Dado Diameter: 8 inches
- Maximum Dado Width: 13/16 inches
- Table Size (without extensions): 22 x 30-1/2 inches
- Table Size (with extensions): 42 x 30-1/2 inches
- Table Height: 35 inches from floor
- Dust Collection (minimum CFM): 400
- Dust Port Diameter: 4 inches
- Motor: 5 HP, single-phase, 230-volt
- Motor Current: 21 amps
- Recommended Circuit Size: 30 amps
HOW TO USE:
- Ensure the Powermatic PM25150RK is connected to a 230-volt electrical outlet with a minimum 30-amp circuit.
- Adjust the Accu-Fence system for precise rip cuts.

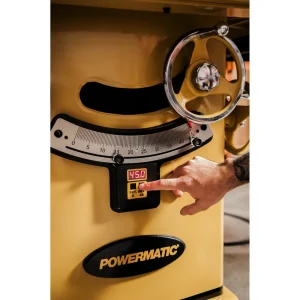

- Use the integrated digital readout to set accurate bevel angles.

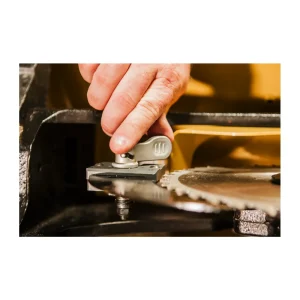

- Change blades quickly and safely with the arbor lock lever.
- Activate the saw using the safety switch and utilize the knee-activated stop button for emergencies.
- Connect a 4-inch dust collection hose to maintain a clean workspace.
BENEFITS OF USING THE Powermatic 2000B 5HP 1PH 50″ RIP Table Saw Router Lift (PM25150RK)
- Precision and Durability: Accu-Fence system, heavy-duty construction.
- Efficiency and Safety: Quick blade changes, improved dust collection, safety features.
- User-Friendly Features: Digital readout, arbor lock lever, hydraulic caster system.
FEATURES:
- Accu-Fence system, digital readout.
- Arbor lock lever, improved dust collection, quick-release riving knife.
- Heavy-duty construction, Poly-V drive belt system, wide stance.
- Magnetic interlock switch, knee-activated stop button.
