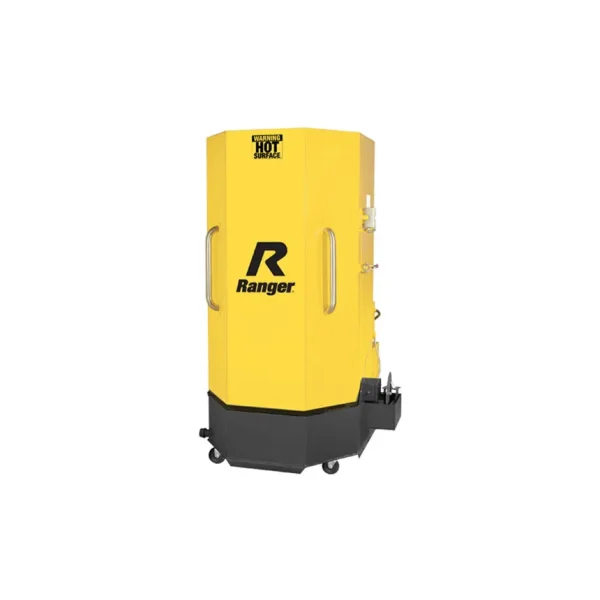

BendPak has designed this spray wash cabinet to clean even better. A large cabinet size and solution tank makes the RS-500D versatile and productive. By using an octagonal full-opening door, they have enhanced access to the turntable to enhance the operator’s loading capabilities. Simple operating controls, brass nozzles, a gasket-free door and a high-capacity 70-gpm pump demonstrate Ranger’s commitment to enhanced performance and productivity without a single sacrifice in quality. Like all Ranger parts washers, the RS-500D is built to last. BendPak constructed the cabinet and door with heavy-duty 12-gauge steel and then coated it with an industrial two-step primer and powder coat finish. All-around performance, durability and improved operator convenience make the RS-500D the definitive choice among professionals worldwide.
Features
- Heavy-duty steel construction
- Removable tank screen
- Stainless oil skimmer
- Removable parts tree
- Powder coat finish
- Brass nozzles
- Full opening octagonal door
- Large drain pipe
- Heavy-duty rubber casters
- Friction-drive turntable system
- Gasket-free door
- Small parts basket
- Stainless steel handles
- Free bucket and soap included
Specifications:
- Overall Height: 66″ / 1,676mm
- Inside Height: 43″ / 1,092mm
- Inside Width: 32″ / 813mm
- Turntable Diameter: 30″ / 762mm
- Tank Capacity: 50 Gallons
- Recommended Floor Space: 44″ x 43″ / 1,118 mm x 1,092 mm
- Load Capacity: 500 lbs.
- Cycle Timer: 0-60 minutes
- Brass Nozzles: 18
- Steel Construction: 12 guage / .109 thickness
- Pump Output: 75 psi @ 70 gpm
- Motor: 1hp / 220 VAC / 60 Hz / 1 Ph
- Electric Heater: 6 kW
- Water Temperature: 0° – 190° F
- Shipping weight: 750 lbs. / 336 kg
- Shipping dimensions: 36″ x 44″ x 68″ / 914 mm x 1,118 mm x 1,727 mm
*Shipping Information:
- Forklift required at time of delivery.
- If no Forklift is available, you can request a liftgate for an additional charge.
- $100 Limited Access Fee for deliveries to schools.
Ships by Ground Only from manufacturer via Truck Freight. Next Day & Second Day Air Shipping Not Available.
